PV400
VOCs Detection Thermal Camera

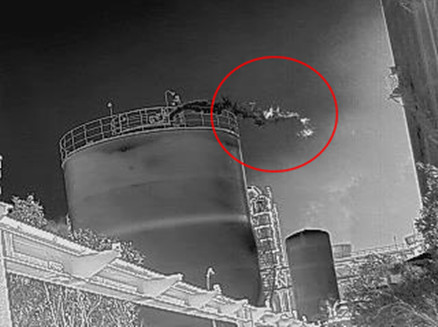

Based on the self-developed high-performance refrigerated infrared detector, the PV series VOCs detection thermal imaging camera converts invisible gas into infrared images visible to the naked eye by leveraging infrared thermal imaging technology. It realizes effective monitoring of methane and other volatile organic compounds leakage during production, transportation, and handling in petrochemical and other enterprises, avoiding accidents such as dangerous gas emissions and ensuring safe production.
320×256@30μmInfrared resolution
50HzFrame rate
0.001mL/sGas detection sensitivity
Ex icⅡC T6 GcExplosion-proof certification
ADD TO COMPARE
-909.png)
.png)
-160.png)
.png)
.png)
.png)
Refrigeration-type detector
High-sensitivity cooled infrared detector, capable of detecting small gas leakage.

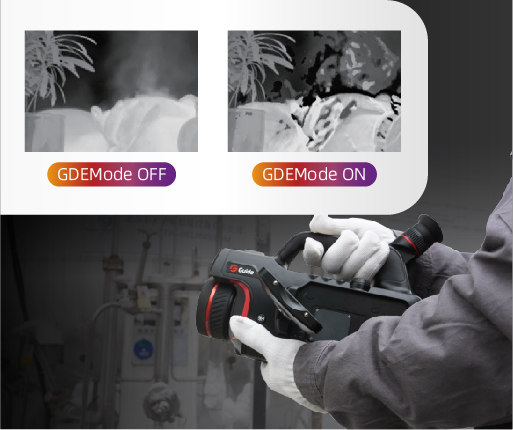

Professional gas-enhancement imaging algorithm
Effectively presenting trends in gas distribution and diffusion.

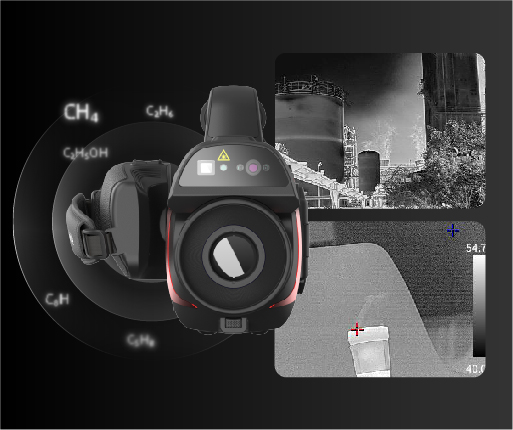

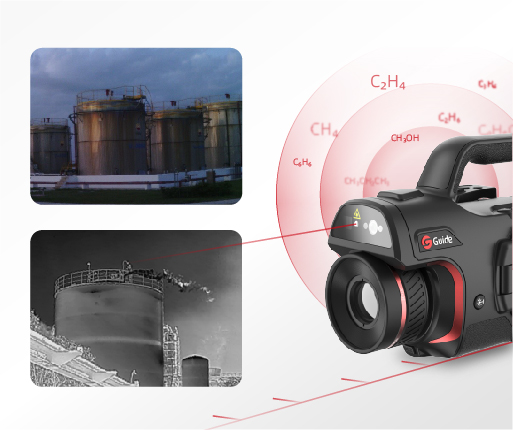

Multiple gas detection
Effective leak detection of alkanes, alkenes, alcohols, benzenes, ketones, and other gases.
Intrinsically safe explosion-proof certification
The intrinsically safe explosion-proof certification Ex icⅡC T6 Gc enables easy compliance with detection requirements within hazardous areas.

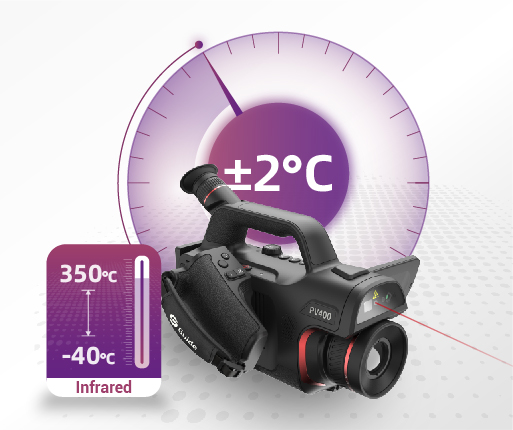

High-precision temperature measurement
The remote non-contact temperature measurement function supports temperature analysis and high-temperature alarms, etc.

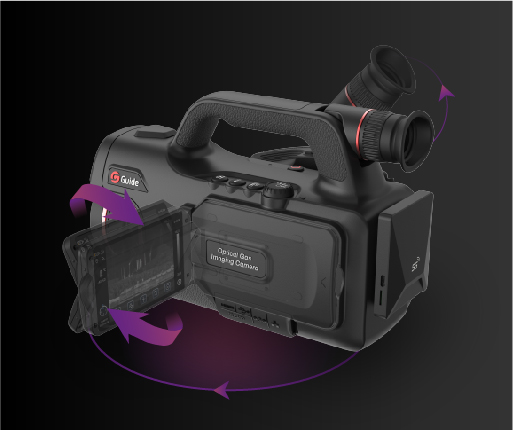

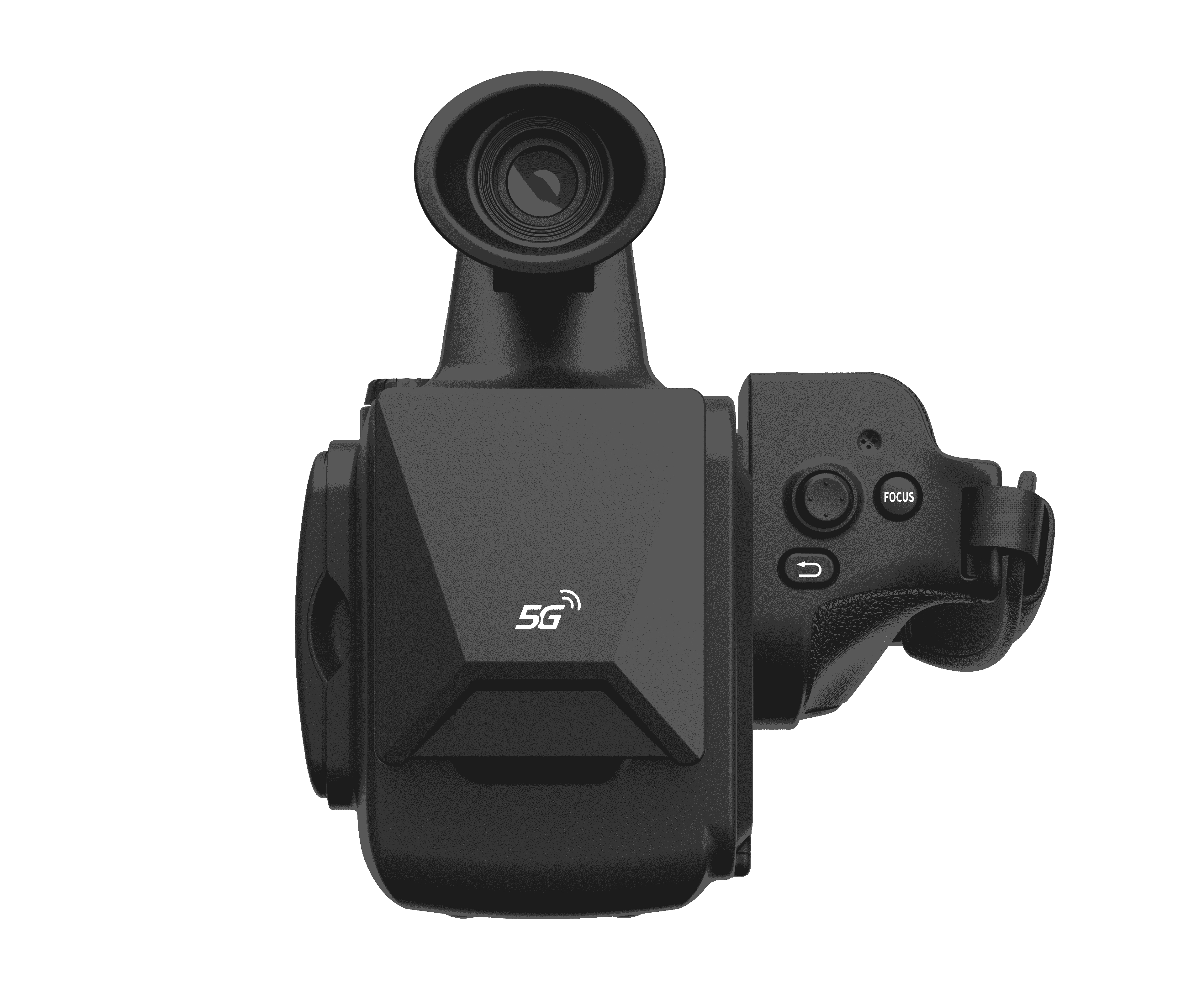

Rotating screen
Equipped with a rotatable OLED viewfinder and a flip-out LCD touchscreen, allowing operators to conveniently observe from multiple angles.

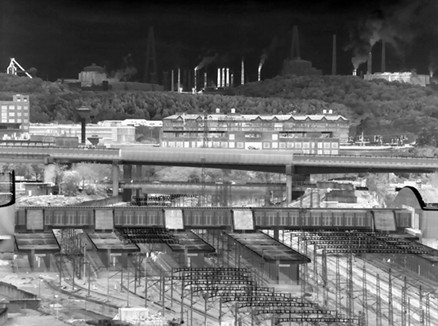

Applications
Media Gallery
Technical Parameters
Model
PV400
ADD TO COMPARE
| Imaging and optics | ||||
|---|---|---|---|---|
| Detector type | Cooled, HgCdTe/MCT, 3.2μm~3.5μm | |||
| Infrared resolution | 320×256@30μm | |||
| Super resolution | Yes, Upgrade to 640×512 | |||
| NETD | Detector NETD≤10mK | |||
| Frame rate | 50Hz | |||
| Focal length | 23mm | |||
| Field of view | 24°×18° | |||
| IFOV | 1.3mrad | |||
| Min. object distance | 1m | |||
| D:S | 769:1 | |||
| Focusing mode | Manual/Automatic | |||
| Digital zoom | 1x to 10x | |||
| Measurement and analysis | ||||
|---|---|---|---|---|
| Measurement range | IR mode: -40~350 °C; Gas mode: -40 °C~60 °C | |||
| Measurement accuracy | ±2°C or ±2%, whichever is greater | |||
| Analyzed target | Supports adding up to 15 analyzed targets (including a maximum of 15 spots, 2 lines, 4 circles, and 4 rectangles) | |||
| Alarm | Full screen temperature threshold alarm (image, voice and flash) | |||
| Parameter settings | Emissivity, reflection temperature, target distance, humidity, atmospheric temperature, optical transmittance | |||
| Others | Customized physical button, OTA update | |||
* Product performance is based on testing in a controlled laboratory environment. Your test results may vary due to several external and environmental factors. All specifications are subject to the actual product. The manufacturer reserves the right to modify technical specifications without notice or liability to you.
