PT870
HD High-Performance Thermal Camera

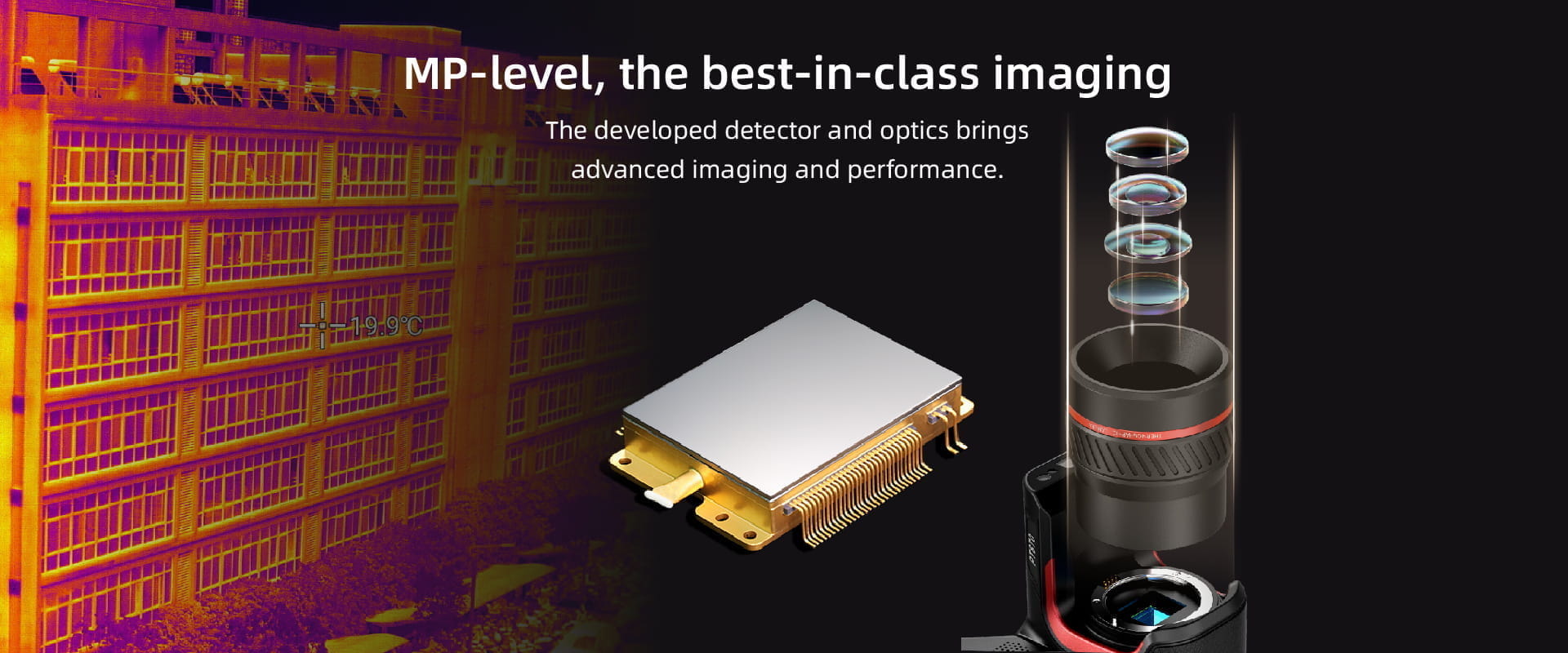

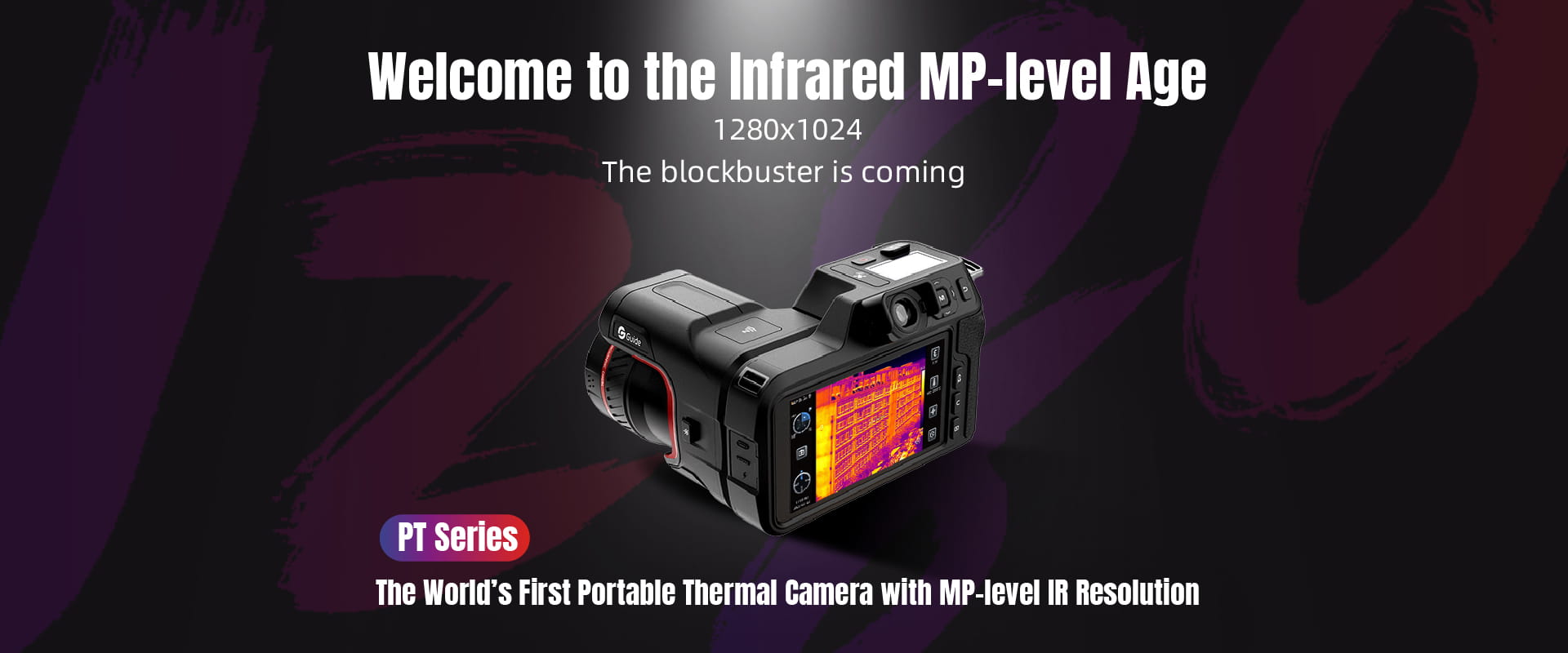

Guide PT Series is the world’s first portable thermal camera with MP-level Infrared Resolution. Equipped with the self-developed 1280×1024 IR detector, this camera has the A/M-Focus manual and auto focusing system to provide much more crisp images. Advanced hardware, software and exceptional experience ensure it is the flagship in this industry.
1280×1024 IR resolution
NFC One-touch transmission

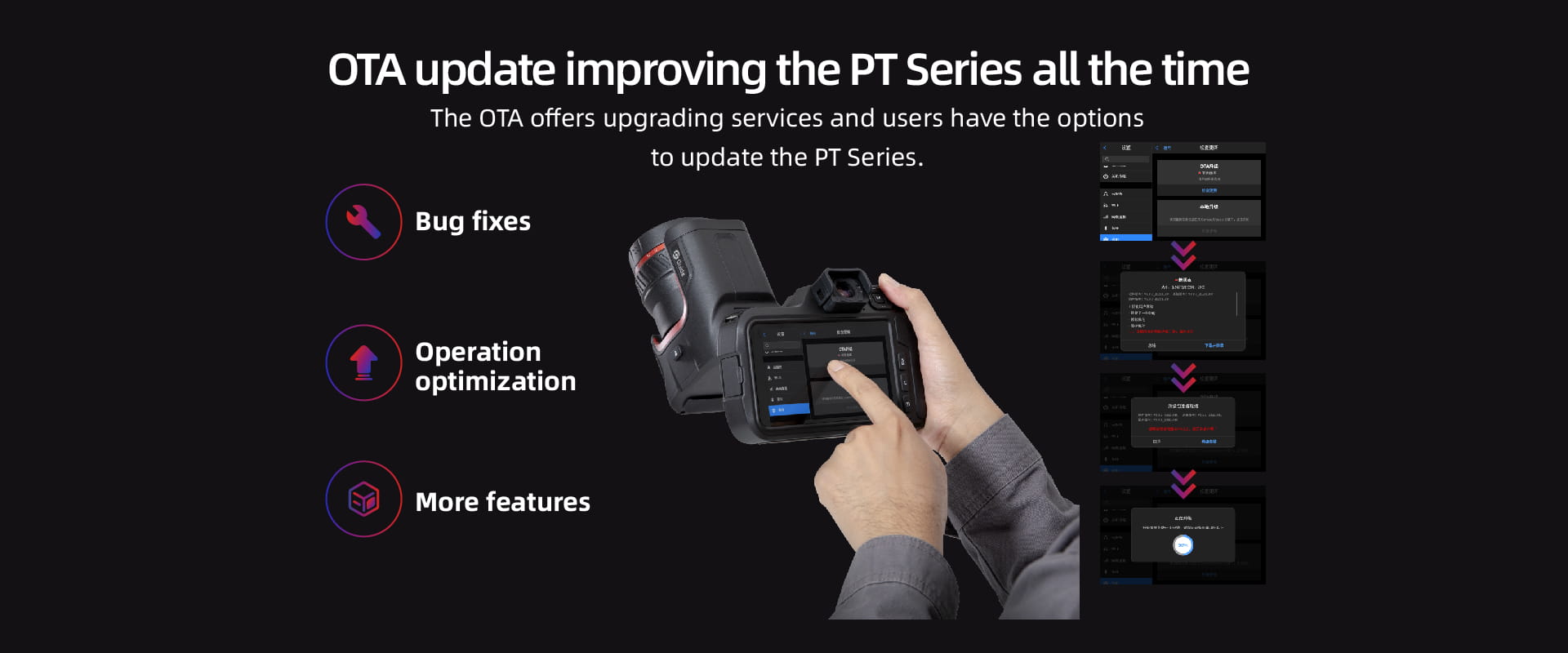

OTA update

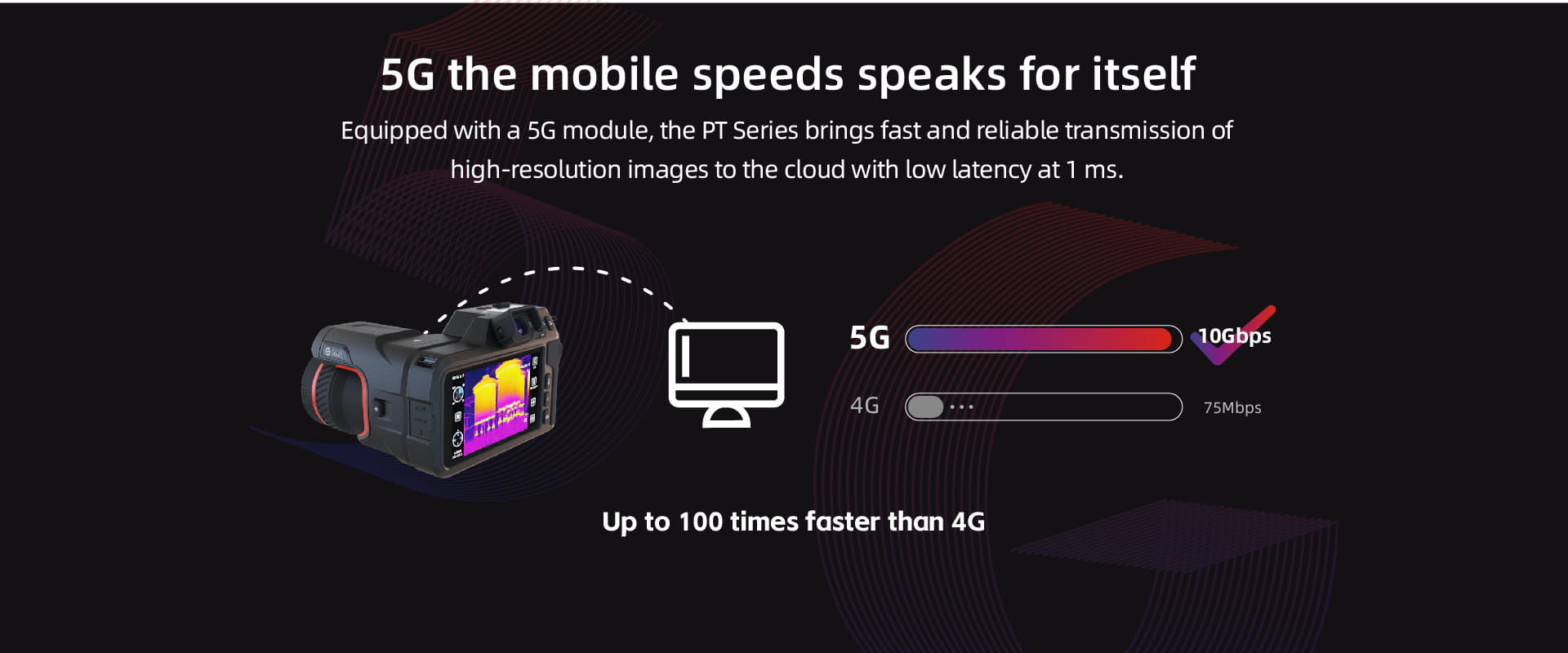

5GCommunications
ADD TO COMPARE
(1).png)
(1).png)
(1).png)
(1).png)
(1).png)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)

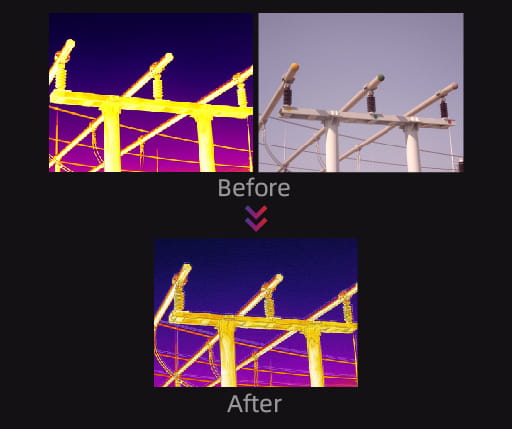

MIFusion+ Multi-spectral Image Fusion Technology
Guide MIFusion+ adds visible light details to thermal images in real time for greater clarity and observing efficiency.
-672.jpg)

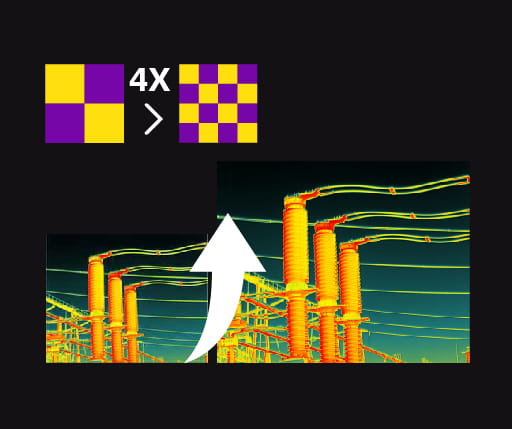

IR-Perfclear Super-resolution Reconstruction Technology
In the IR-Perfclear mode, the PT Series aims to acquire enhanced high-resolution images with better visual effects, a fourfold increase in the resolution.
.jpg)

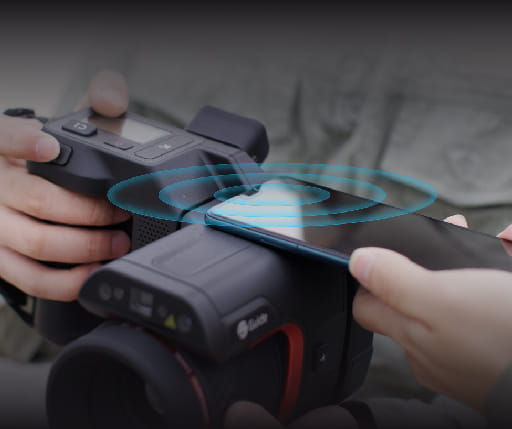

NFC transmission, Faster than you may imagine
The NFC offers one-touch data sharing between the PT Series and another device.
.jpg)

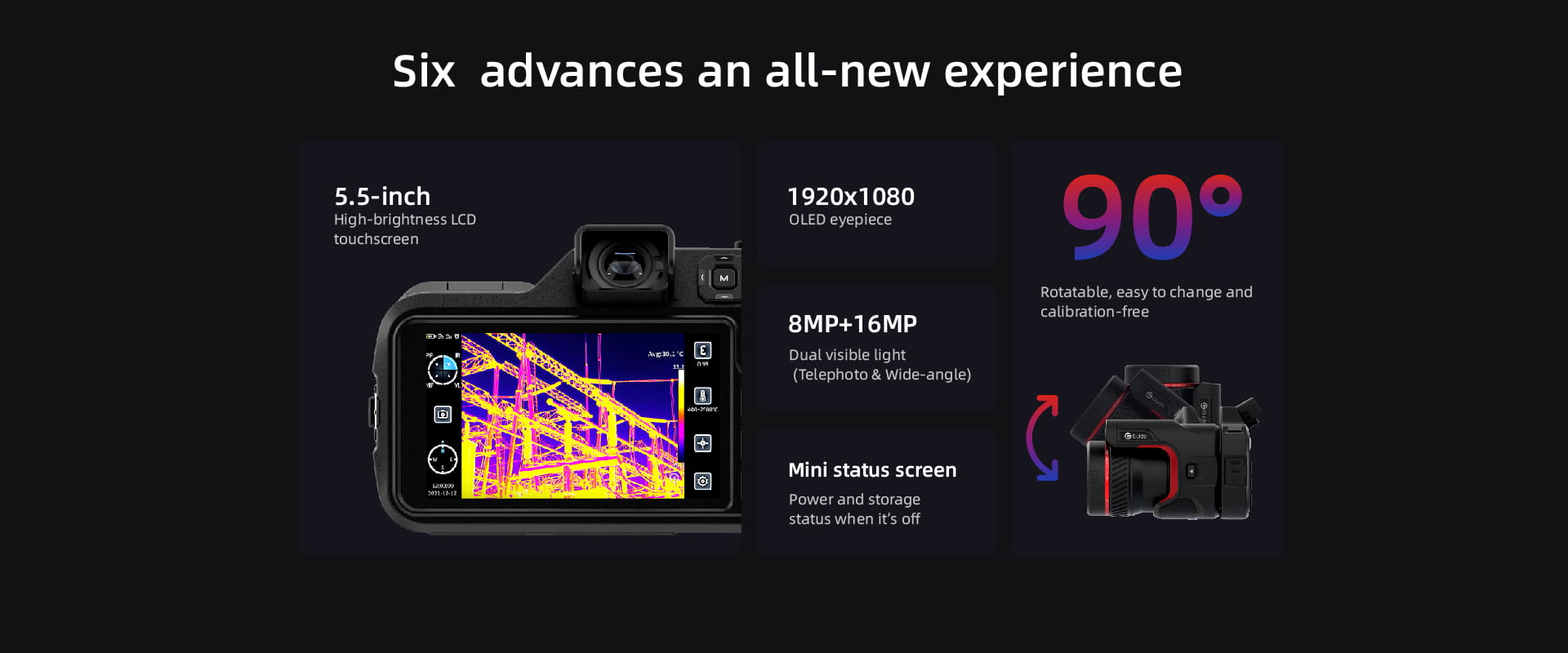

Ultimate configuration and features, Having everything users expect
.jpg)

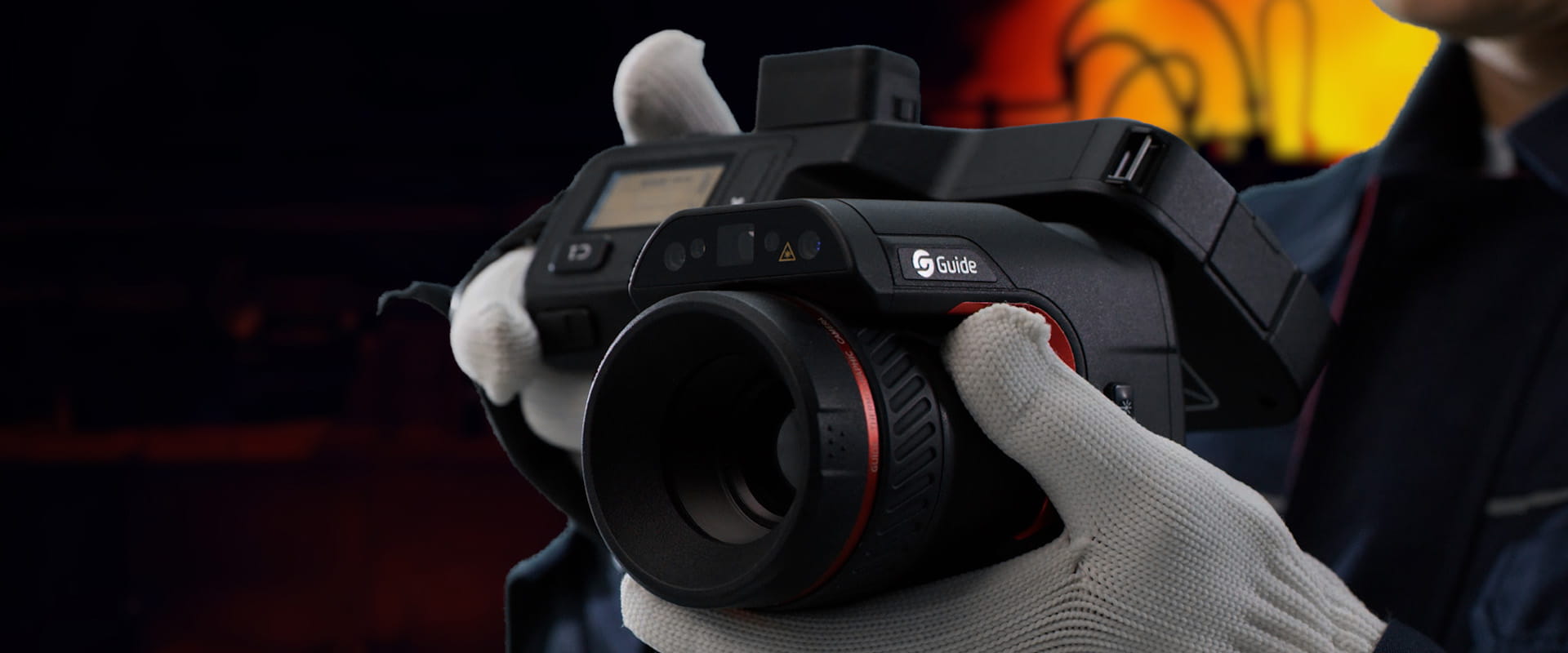

Media Gallery
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Technical Parameters
Model
PT870
ADD TO COMPARE
| Imaging and optics | ||||
|---|---|---|---|---|
| Detector type | VOx, 7.5 to 14μm | |||
| Infrared resolution | 1280×1024@12μm | |||
| Super resolution | Yes, Upgrade to 2560×2048 | |||
| NETD | 25mK | |||
| Frame rate | 30Hz/9Hz | |||
| Focal length | 35mm | |||
| Field of view | 25°×19° | |||
| IFOV | 0.34mrad | |||
| Min. object distance | 0.3m | |||
| D:S | 2941:1 | |||

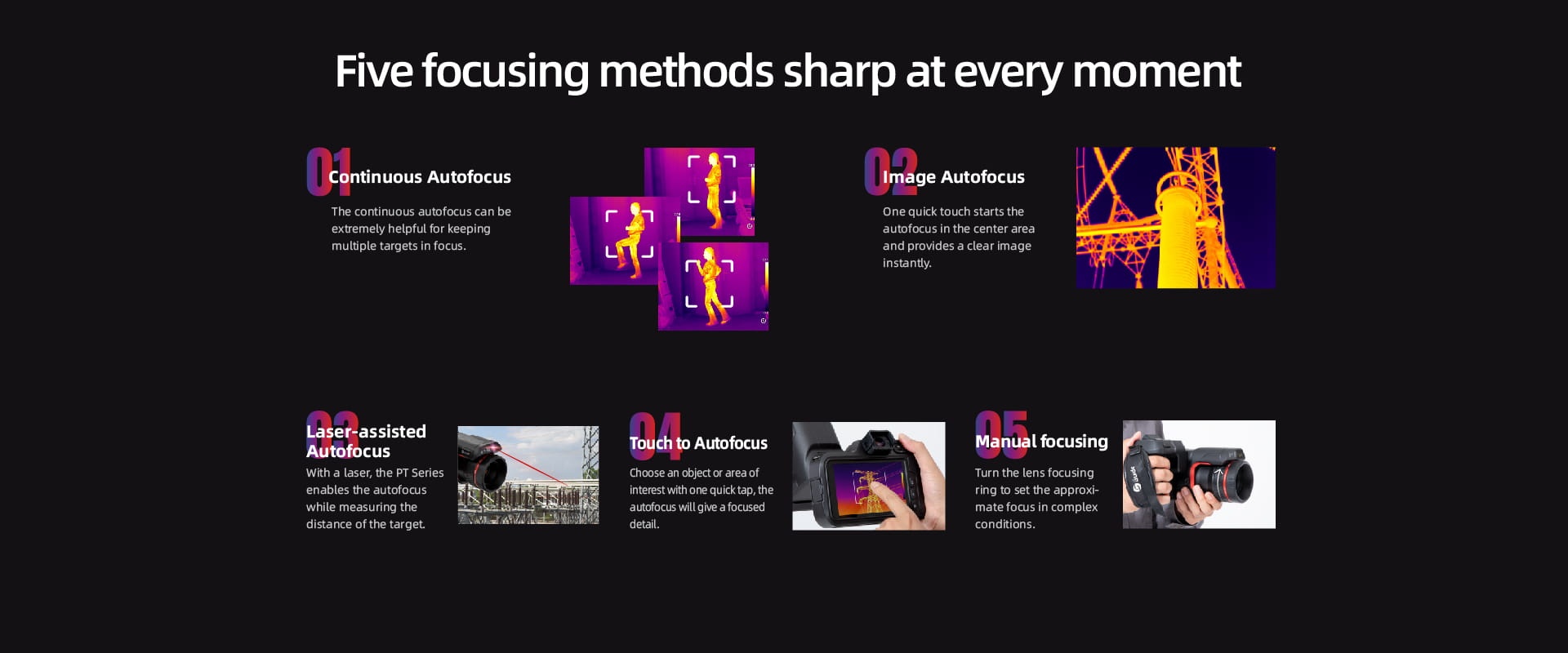

| Focusing mode | Manual / Automatic / Touch autofocus / Continuous autofocus | |||
| Digital zoom | 1.1x to 50x | |||
| Measurement and analysis | ||||
|---|---|---|---|---|
| Measurement range | Support auto-switching: -40°C to 150°C, 0°C to 800°C, Optional 400°C to 2500°C (High temperature lens is required) | |||
| Measurement accuracy | ±1°C or ±1%, whichever is greater | |||
| Analyzed target | 35 in total (Spot/Line/Area) | |||
| Alarm | Full screen temperature threshold alarm (image, voice and flash) | |||
| Parameter settings | Emissivity, reflected temperature, target distance, humidity, atmospheric temperature, optical transmittance, dew point | |||
| Others | Customized physical button, NFC connection, OTA update | |||
* Product performance is based on testing in a controlled laboratory environment. Your test results may vary due to several external and environmental factors. All specifications are subject to the actual product. The manufacturer reserves the right to modify technical specifications without notice or liability to you.
