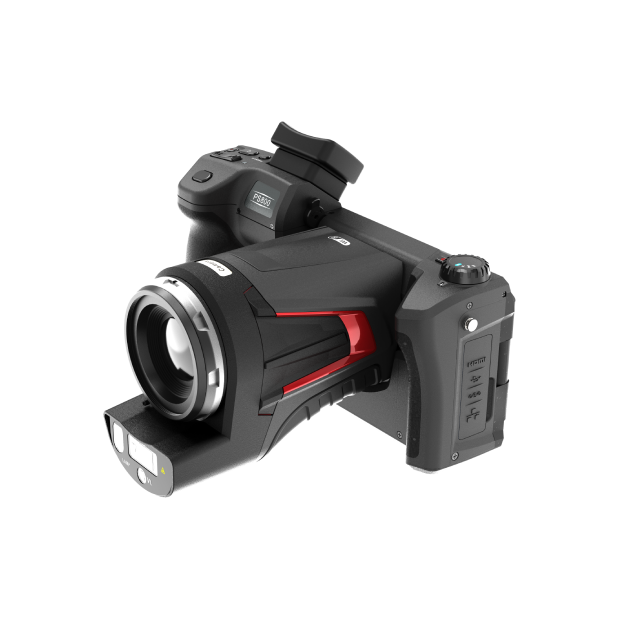

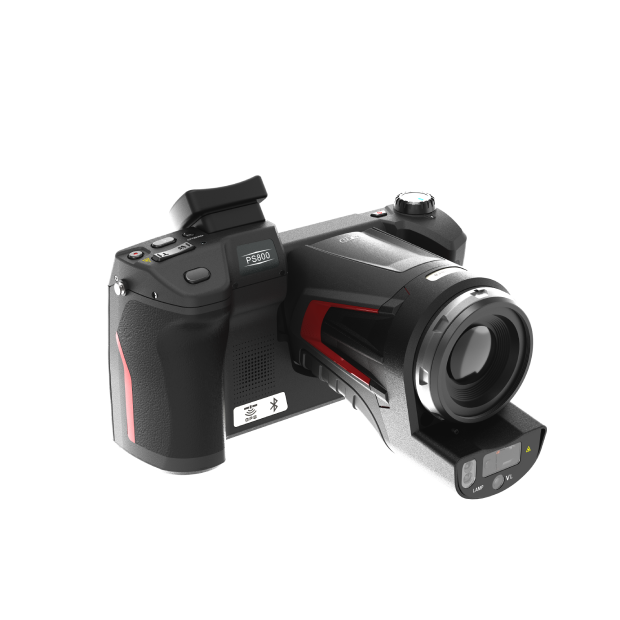

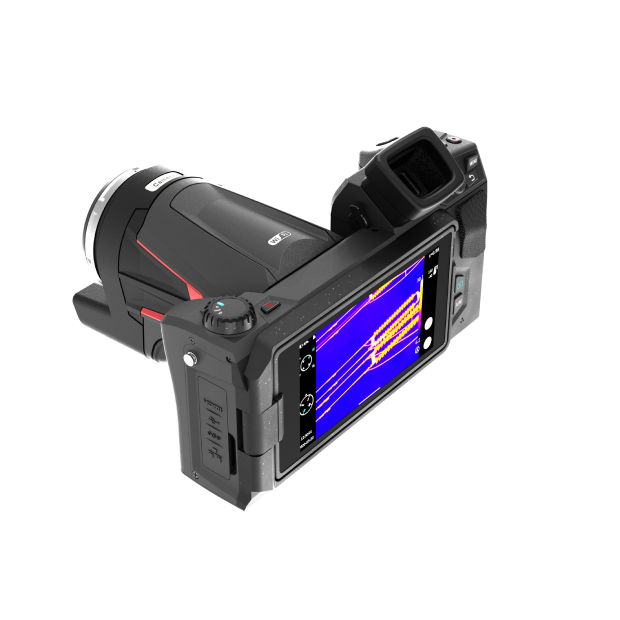

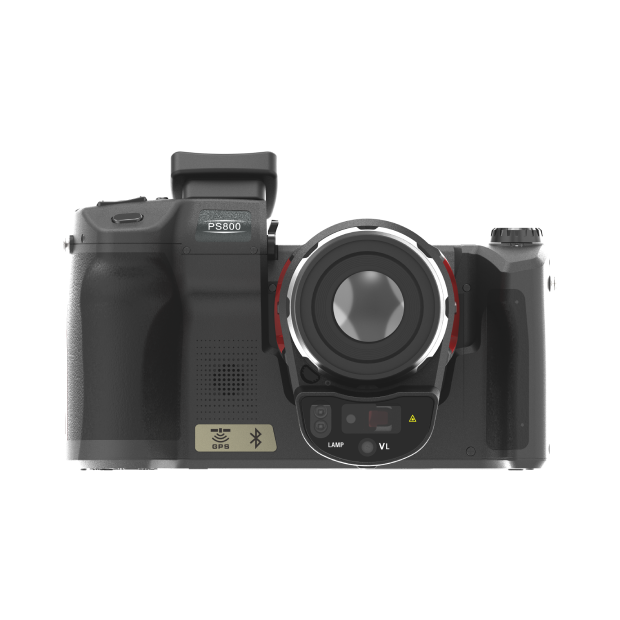

PS800

PS800

High Performance Thermal Camera

The Guide PS Series high-performance thermal camera is designed to make the inspection, maintenance and troubleshooting work easier, faster and more accurate. It adopts a new generation of uncooled IR focal-plane detectors, which provides sharper thermal images and higher measurement accuracy. With its rotatable lens and screen structure, up to 13 million pixels visible light camera module, high precision rangefinder, and supplemented by some professional functions such as AI recognition naming, intelligent area measurement, flexible emissivity settings by areas, super-resolution reconstruction, strive to meet the needs of every thermography experts.


1024x768Infrared module

13MillionVisible light

30mkNETD

IP54Encapsulation

High Performance Thermal Camera 1
High Performance Thermal Camera 2
High Performance Thermal Camera 3
High Performance Thermal Camera 4

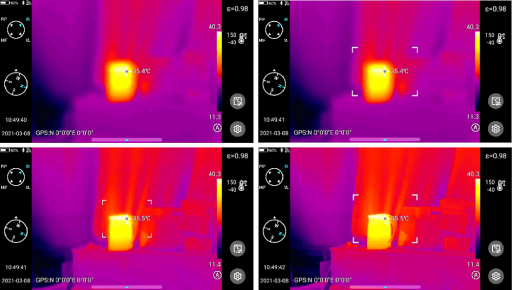

1 Fast Focus

Adopts a new generation of focus motor and professional laser rangefinder to achieve 0.4 second one-touch smart autofocus

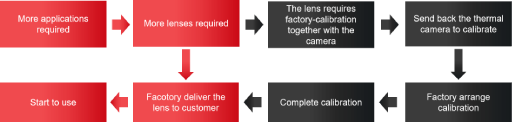

Calibration-free Lenses

Calibration-free extended lenses function, for more application scenarios,No need factory-calibration, time-saving and cost-saving

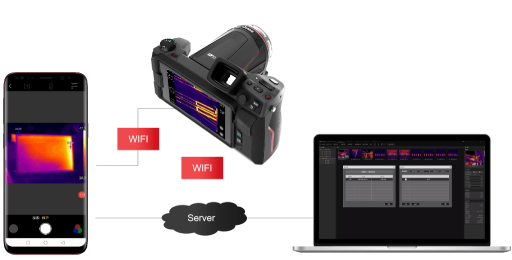

Cloud Service

Share images to the Cloud anytime, anywhere, for remote analysis and problem feedback,WIFI Connect :1、Mobile hotspot ;2、Wireless router;3、4G mobile communication (optional)

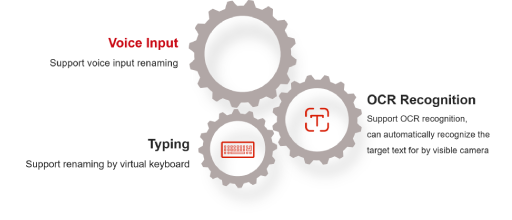

AI Voice Recognition

Support customization of the image naming, three input methods, convenient for memory and file management

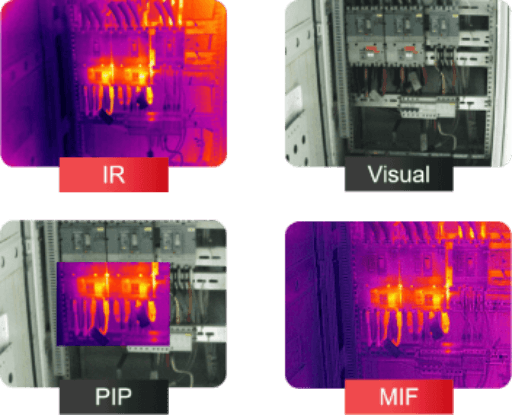

MIF Patent Technology of Multi-spectral Image Fusion

Provides four image modes: IR, visible light, PIP and MIF.  The unique MIF mode supports the fusion of visible light image details on the thermal image, which will comprehensively improve your observation experience and work efficiency

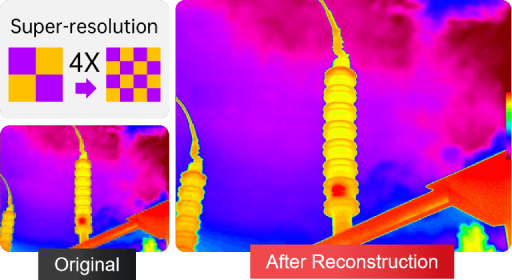

Image Super-resolution Reconstruction

The image details can be increased by specific algorithm. Super-resolution reconstruction can increase the pixel of infrared image to 4 times the original, and obtain high-quality imaging effect


Media Gallery

thermal image by Guide PS800

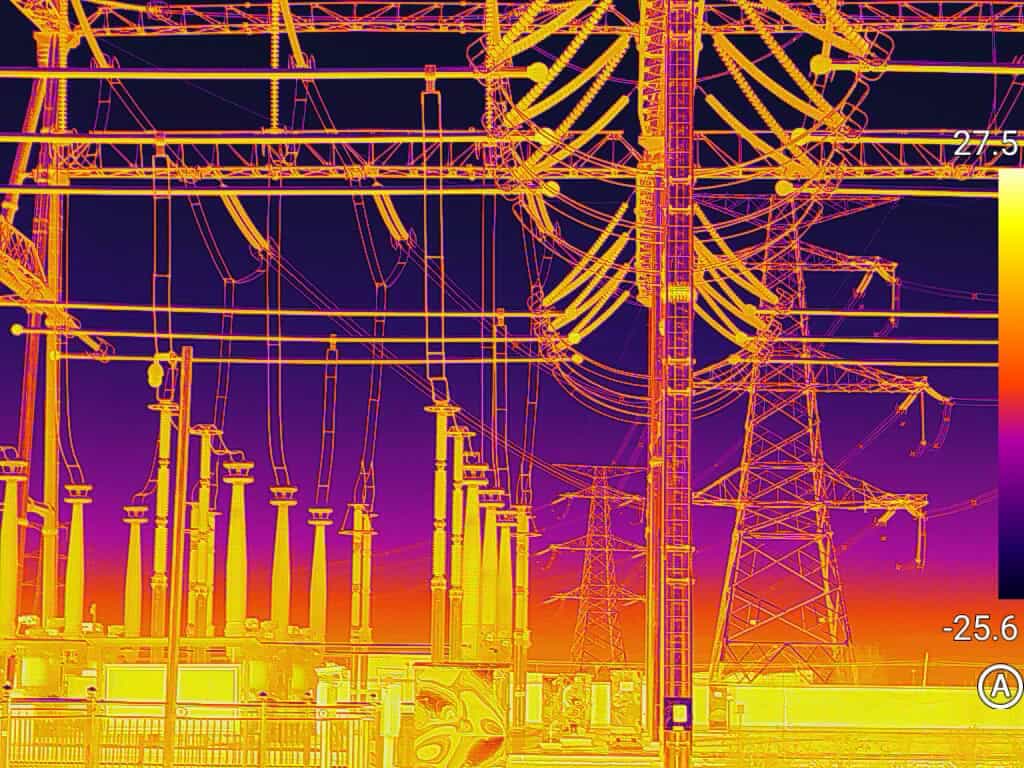

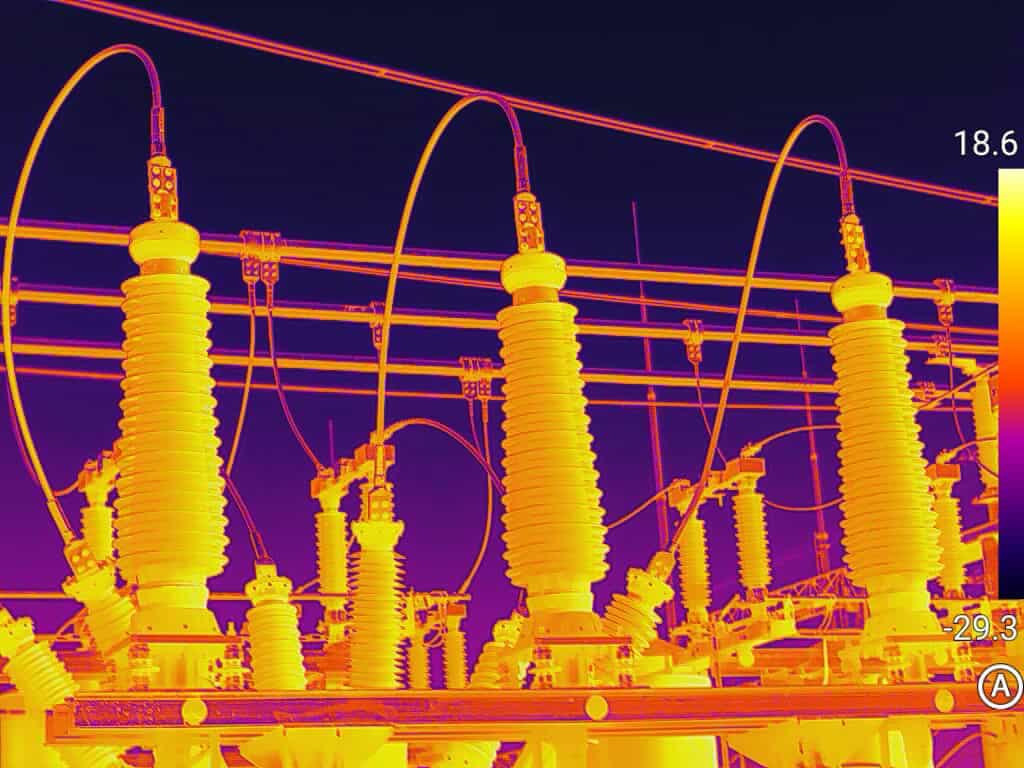

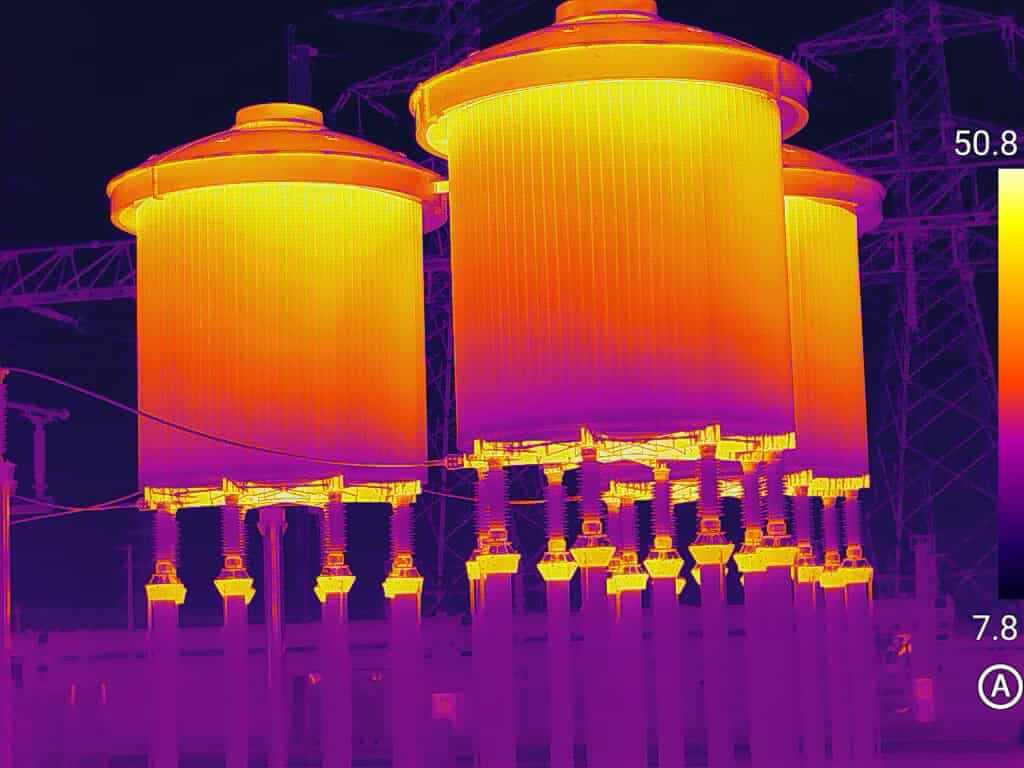

Electric power image by Guide PS800

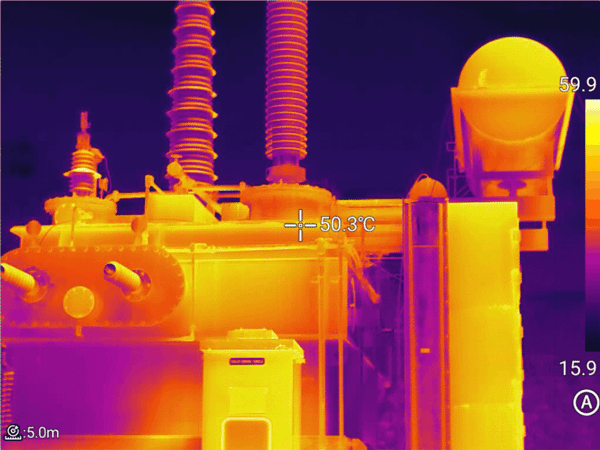

Electrical image by Guide PS800

Image by Guide PS800

Technical Parameters

Model

PS800

ADD TO COMPARE

Imaging and optics
Detector type VOx, 7.5 to 14μm
Infrared resolution 1024×768@12μm
Super resolution Yes, Upgrade to 2048×1536
NETD 30mK
Frame rate 25Hz/9Hz
Focal length 28mm
Field of view 25°×19°
IFOV 0.43mrad
Min. object distance 0.3m
D:S 2325:1
Focusing mode Automatic/Electric
Digital zoom 1.1x to 35x
Measurement and analysis
Measurement range Support auto-switching: -40°C to 150°C, 100°C to 800°C, Optional 700°C to 2000°C (High temperature lens is required)
Measurement accuracy ±1°C or ±1%, whichever is greater
Analyzed target 30 in total (Spot/Line/Area)
Alarm Full screen temperature threshold alarm (image and voice)
Parameter settings Emissivity, reflected temperature, target distance, humidity, atmospheric temperature, optical transmittance
Others Customized physical button

* Product performance is based on testing in a controlled laboratory environment. Your test results may vary due to several external and environmental factors. All specifications are subject to the actual product. The manufacturer reserves the right to modify technical specifications without notice or liability to you.
