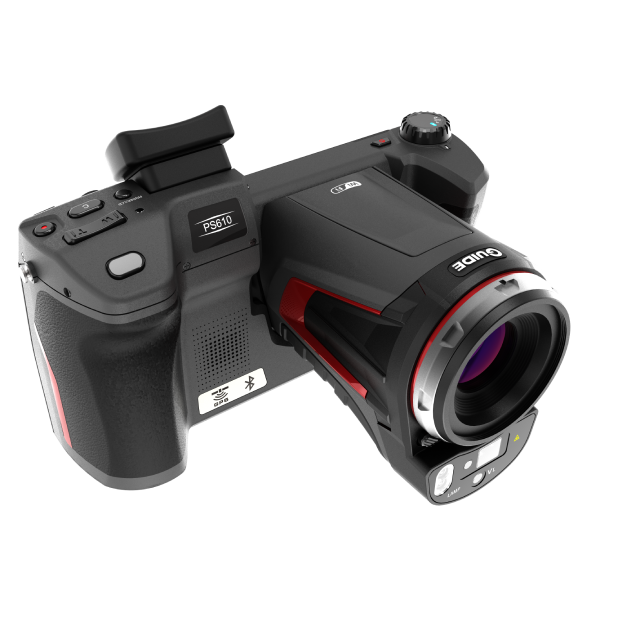

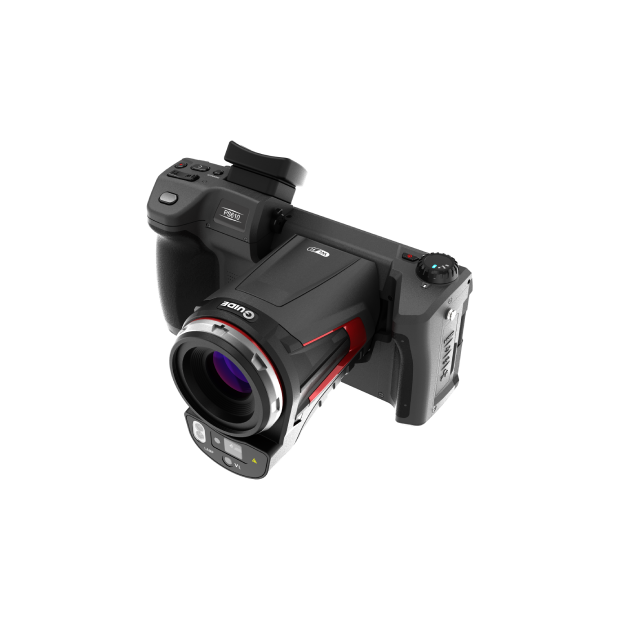

PS610
High Performance Thermal Camera

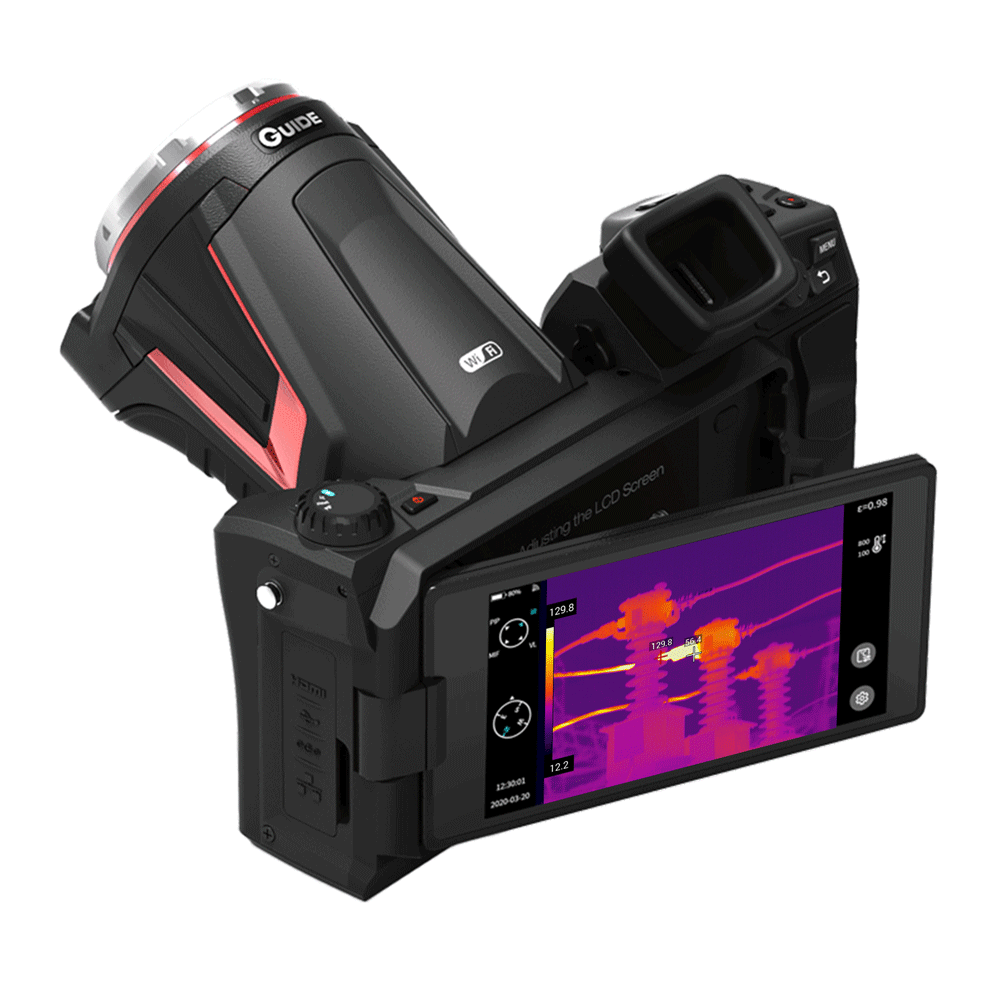

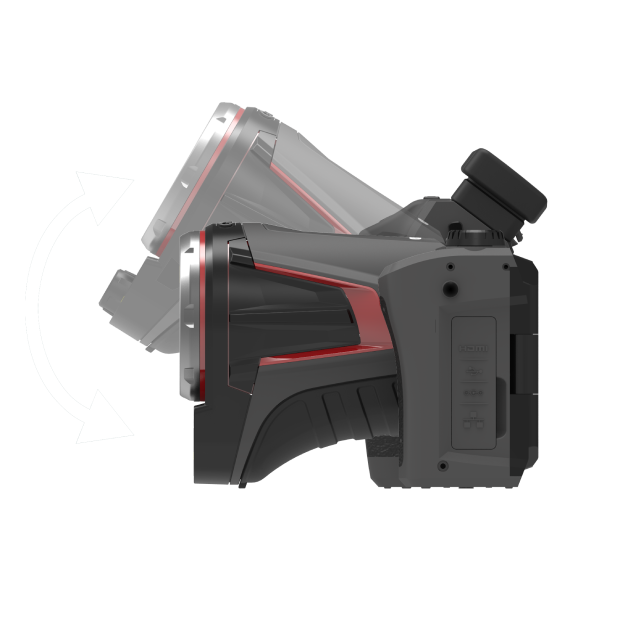

The Guide PS Series high-performance thermal camera is designed to make the inspection, maintenance and troubleshooting work easier, faster and more accurate. It adopts a new generation of uncooled IR focal-plane detectors, which provides sharper thermal images and higher measurement accuracy. With its rotatable lens and screen structure, up to 13 million pixels visible light camera module, high precision rangefinder, and supplemented by some professional functions such as AI recognition naming, intelligent area measurement, flexible emissivity settings by areas, super-resolution reconstruction, strive to meet the needs of every thermography experts.
640x480Infrared module
1×~35× continuouslyDigital Zoom
30mkNETD
IP54Encapsulation
ADD TO COMPARE

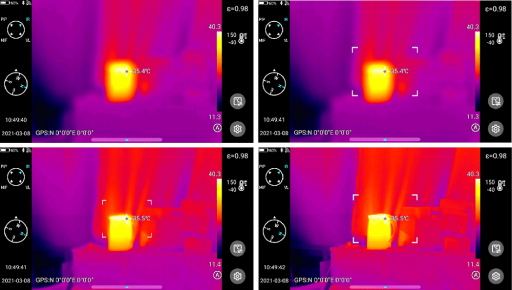

1 Fast Focus
Adopts a new generation of focus motor and professional laser rangefinder to achieve 0.4 second one-touch smart autofocus

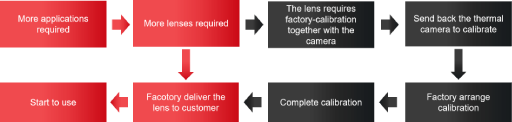

Calibration-free Lenses
Calibration-free extended lenses function, for more application scenarios，No need factory-calibration, time-saving and cost-saving

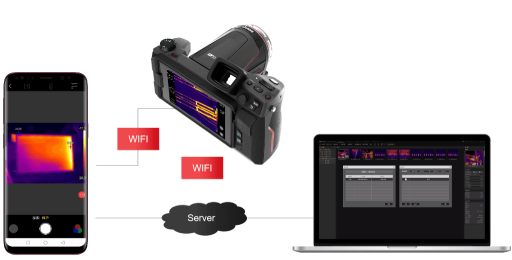

Cloud Service
Share images to the Cloud anytime, anywhere, for remote analysis and problem feedback，WIFI Connect ：1、Mobile hotspot ；2、Wireless router；3、4G mobile communication (optional)

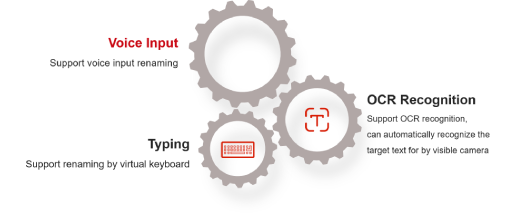

AI Voice Recognition
Support customization of the image naming, three input methods, convenient for memory and file management
MIF Patent Technology of Multi-spectral Image Fusion (Patient No.: CN201510473667.8)

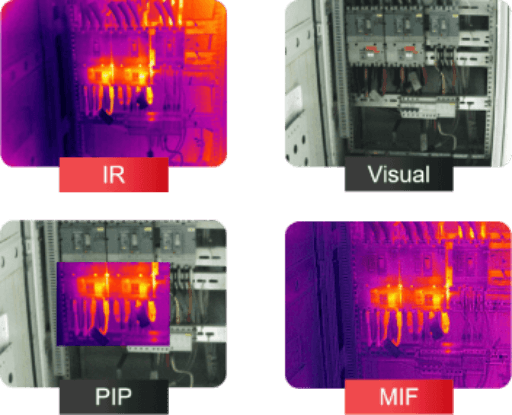

Provides four image modes: IR, visible light, PIP and MIF. The unique MIF mode supports the fusion of visible light image details on the thermal image, which will comprehensively improve your observation experience and work efficiency

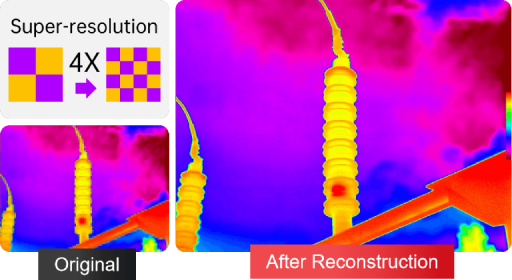

Image Super-resolution Reconstruction
The image details can be increased by specific algorithm. Super-resolution reconstruction can increase the pixel of infrared image to 4 times the original, and obtain high-quality imaging effect

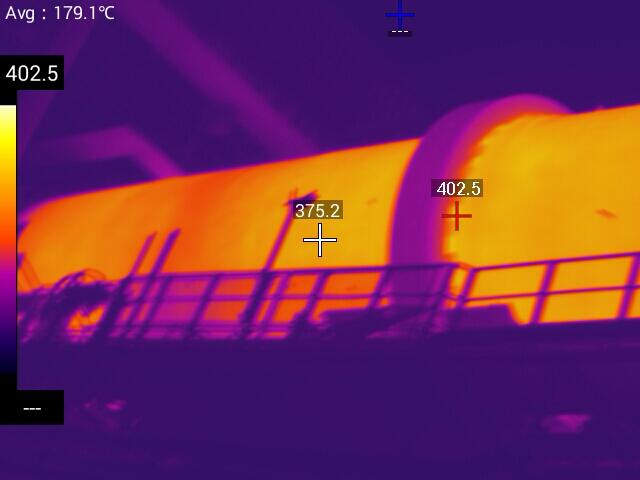

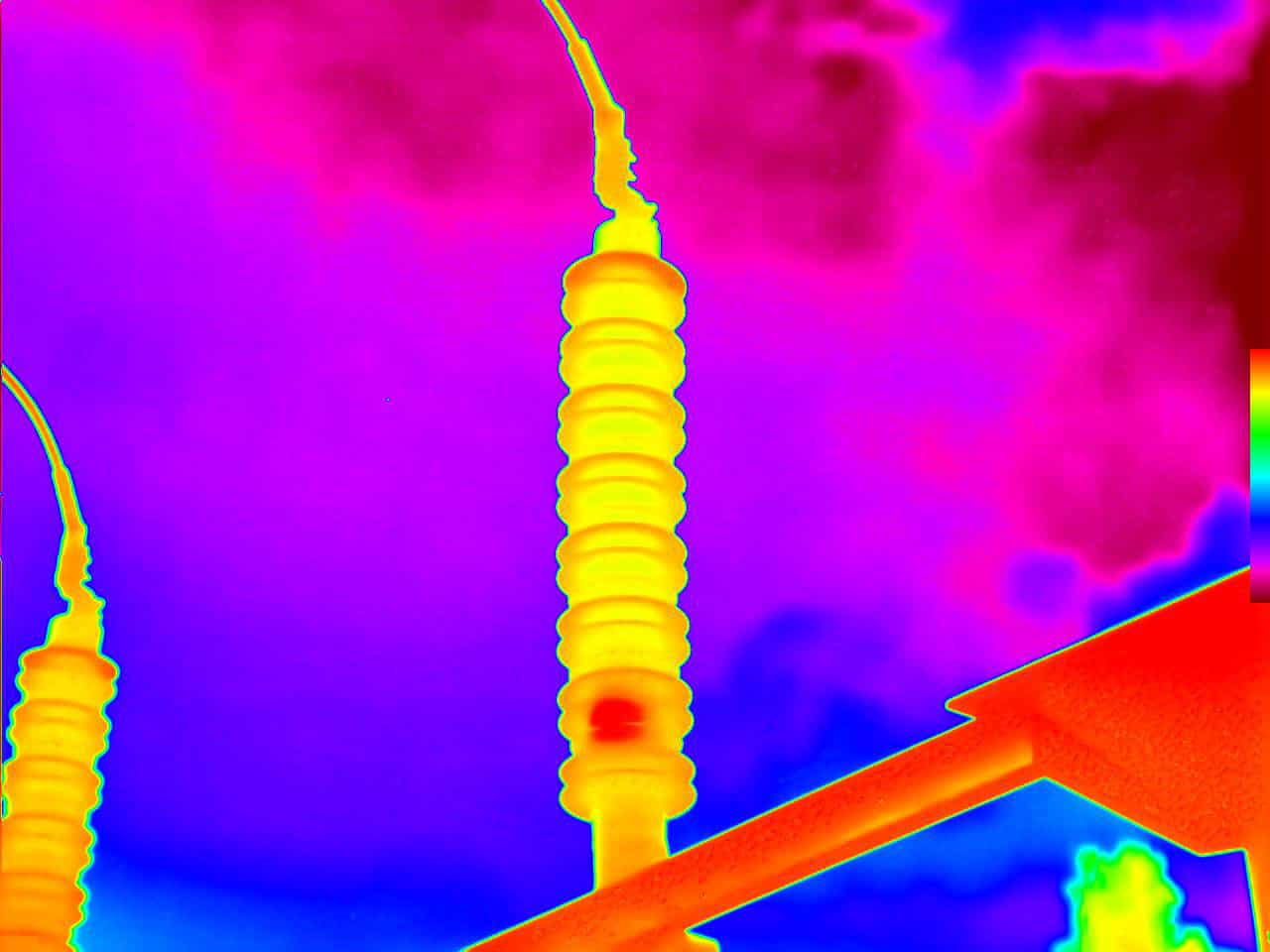

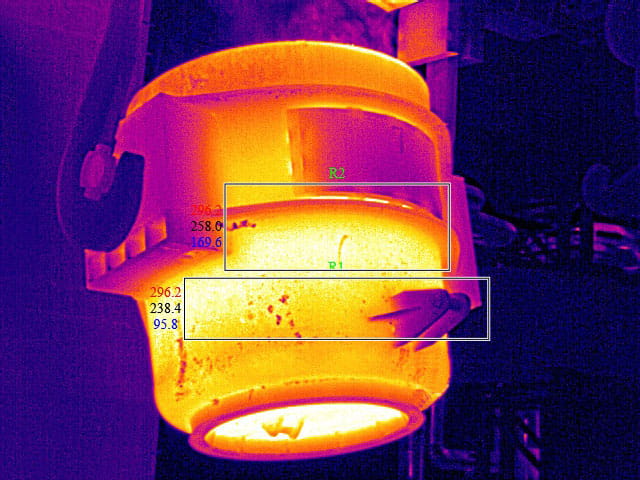

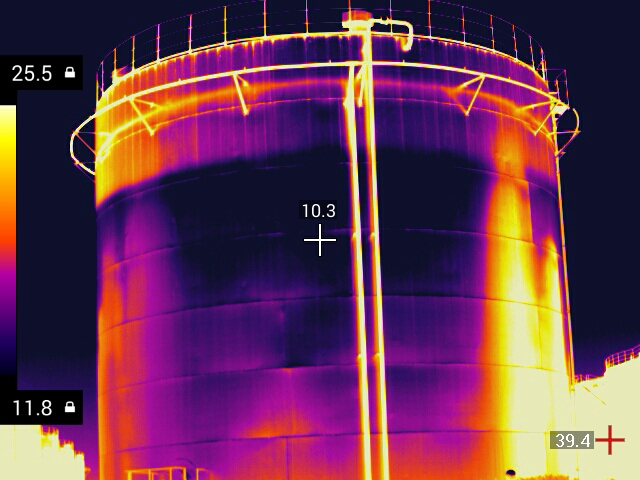

Applications
Media Gallery
Technical Parameters
Model
PS610
ADD TO COMPARE
| Imaging and optics | ||||
|---|---|---|---|---|
| Detector type | VOx, 7.5 to 14μm | |||
| Infrared resolution | 640×480@17μm | |||
| Super resolution | Yes, upgrade to 1280×960 | |||
| NETD | 30mK | |||
| Frame rate | 30Hz/9Hz | |||
| Focal length | 25mm | |||
| Field of view | 25°×19° | |||
| IFOV | 0.68mrad | |||
| Min. object distance | 0.3m | |||
| D:S | 1470:1 | |||
| Focusing mode | Automatic/Electric(Manual) | |||
| Digital zoom | 1.1x to 35x | |||
| Measurement and analysis | ||||
|---|---|---|---|---|
| Measurement range | Support auto-switching: -40°C to 150°C, 100°C to 800°C, Optional 700°C to 2000°C (High temperature lens is required) | |||
| Measurement accuracy | ±1°C or ±1%, whichever is greater | |||
| Analyzed target | 20 in total (Spot/Line/Area) | |||
| Alarm | Full screen temperature threshold alarm (image and voice) | |||
| Parameter settings | Emissivity, reflected temperature, target distance, humidity, atmospheric temperature, optical transmittance | |||
| Others | Customized physical button | |||
* Product performance is based on testing in a controlled laboratory environment. Your test results may vary due to several external and environmental factors. All specifications are subject to the actual product. The manufacturer reserves the right to modify technical specifications without notice or liability to you.
