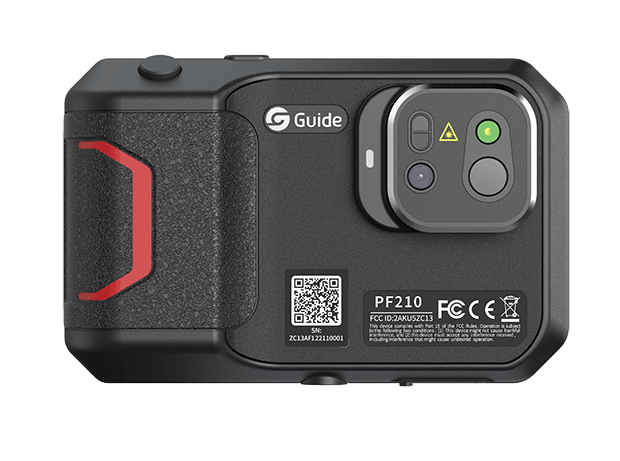

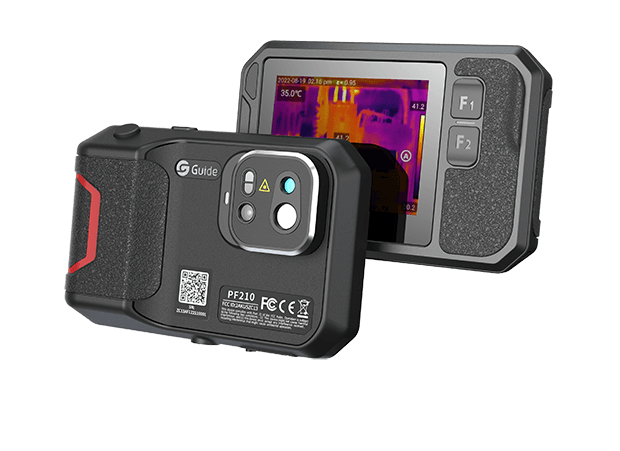

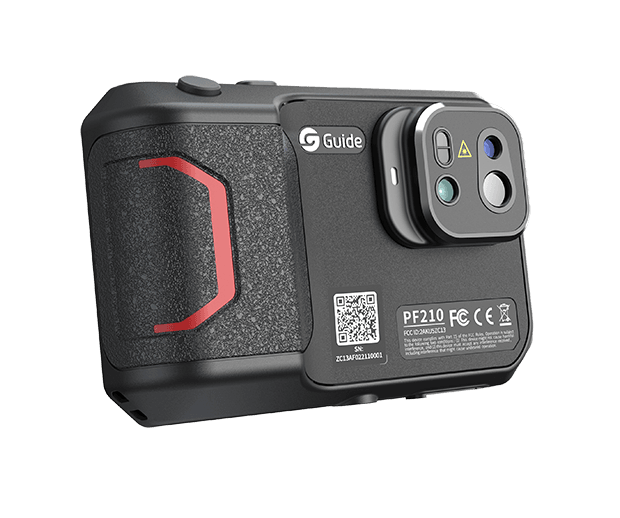

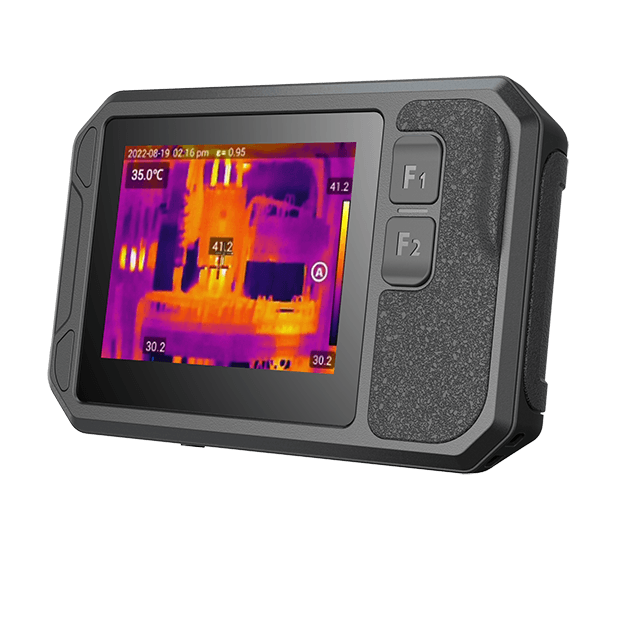

PF210
Pocket-sized Thermal Camera
The PF Series pocket-sized thermal camera is a non-contact inspection tool for diagnosing problems and finding hidden deficiencies of electrical equipment, thanks to its 256 × 192 pixel infrared detector, -20°C to 550°C temperature range, 5 MP visible light camera and 3.5-inch LCD touchscreen. The extraordinary thermal imaging detail, easy operation and built-in Wi-Fi allow users to quickly and easily share the professional reports that document the problem.
256x192IR resolution
-20℃ to 550℃Measurement Range
56° × 48°Field of view
0.3 mMinimum object distance
ADD TO COMPARE
-900.png)
.png)
.png)
.png)
-1.png)
.jpg)
-453.jpg)
.jpg)

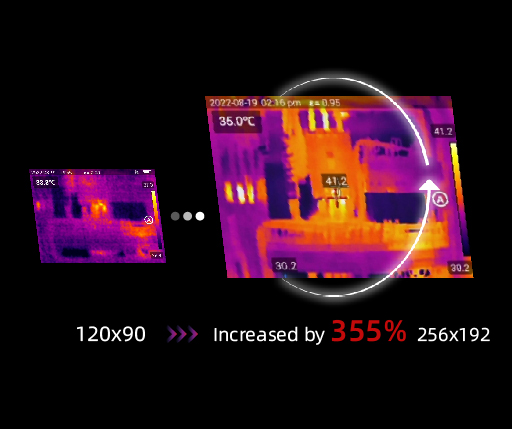

Outstanding thermal imagery
The self-developed WLP infrared module with 256x192 resolution and the new noise reduction algorithm ensure the PF Series produces the more crisp, easier-to-identify images.
-470.jpg)

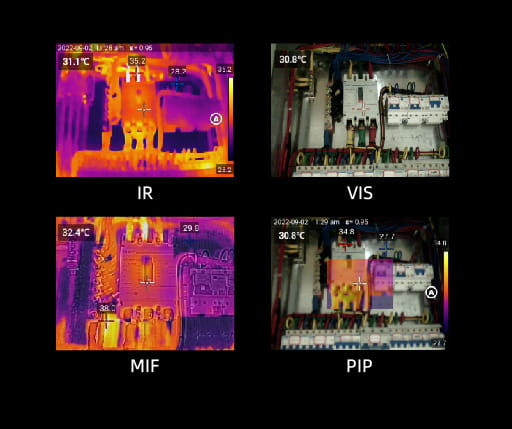

Real-time temperature information
Get accurate maximum, minimum and center-point temperature readings on a full screen in four modes.
-414.jpg)
Easy and fast search
Enter a keyword, find the function setting without difficulty and perform the function you need quickly.
-847.jpg)

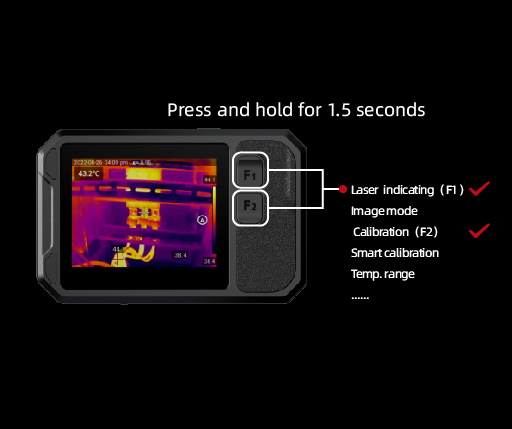

Customized function buttons
Two physical buttons keep you free from looking for the most commonly used functions so that a one-button transfer into the desired function can be realized.
.jpg)
Take and view
When images are captured, taping the thumbnails on the upper right corner helps you view the images again and find a hidden deficiency facilely.
.jpg)

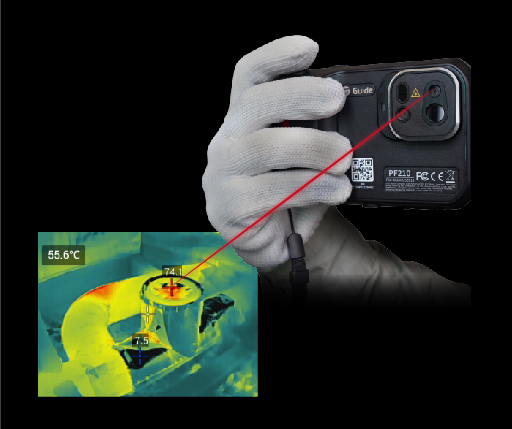

Built-in lasers for fast temperature tracking
Laser indicator
Provide precise location and accurate temperature measurement of targets.
Laser rangefinder
Accurate range-to-target and intelligent area calculation of a rectangle object.
.jpg)
Applications
Media Gallery
Technical Parameters
Model
PF210
ADD TO COMPARE
| Imaging and optics | ||||
|---|---|---|---|---|
| Detector type | VOx, 7.5 to 14μm | |||
| Infrared resolution | 256×192@12μm | |||
| NETD | 45mK | |||
| Frame rate | 25Hz/9Hz | |||
| Focal length | 3.2mm | |||
| Field of view | 56°×48° | |||
| IFOV | 3.75mrad | |||
| Min. object distance | 0.3m | |||
| D:S | 266:1 | |||
| Focusing mode | Focus-free | |||
| Digital zoom | 1.1x to 8x | |||
| Measurement and analysis | ||||
|---|---|---|---|---|
| Measurement range | Support auto-switching: -20°C to 150°C, 100°C to 550°C | |||
| Measurement accuracy | ±2°C or ±2%, whichever is greater | |||
| Analyzed target | Spot×2 ( Include Center spot), Area×3 | |||
| Alarm | Full screen temperature threshold alarm (image and flash) | |||
| Parameter settings | Emissivity, reflected temperature, target distance | |||
| Others | Customized physical button×2 | |||
* Product performance is based on testing in a controlled laboratory environment. Your test results may vary due to several external and environmental factors. All specifications are subject to the actual product. The manufacturer reserves the right to modify technical specifications without notice or liability to you.
