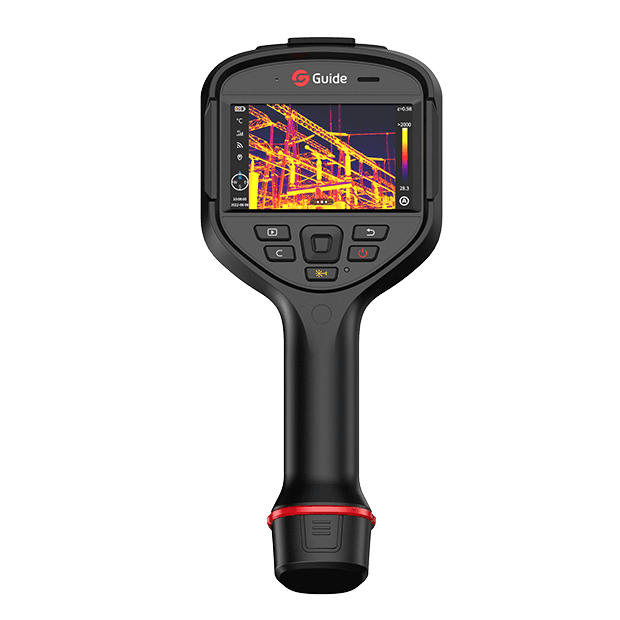

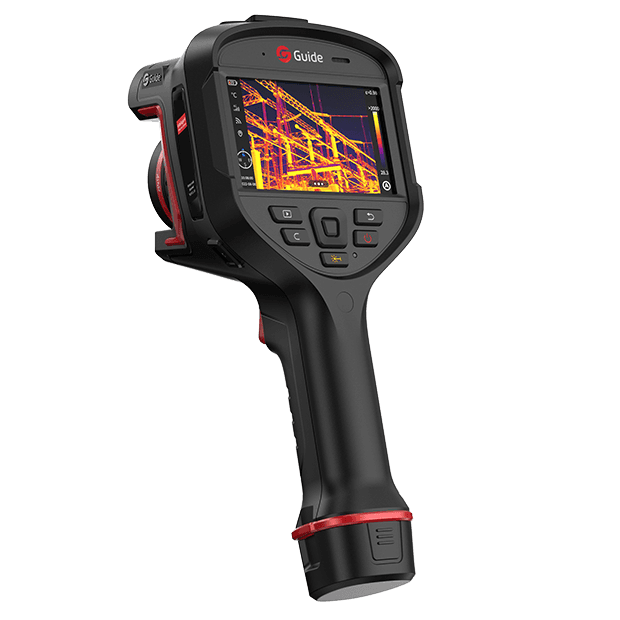

H6

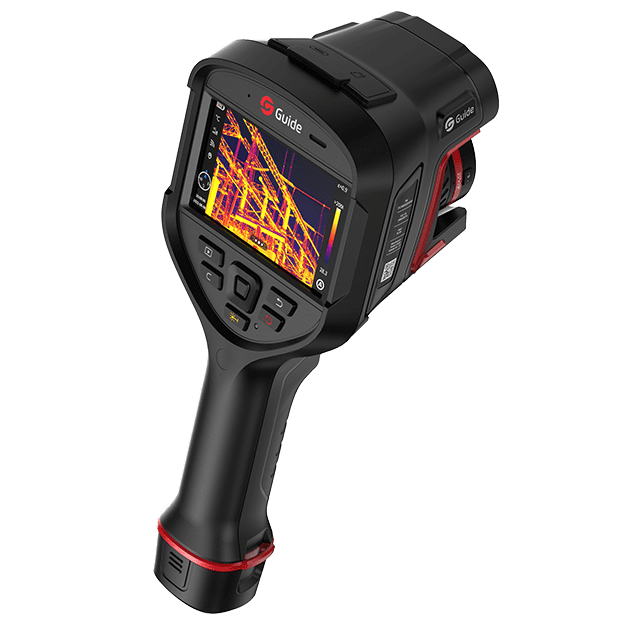

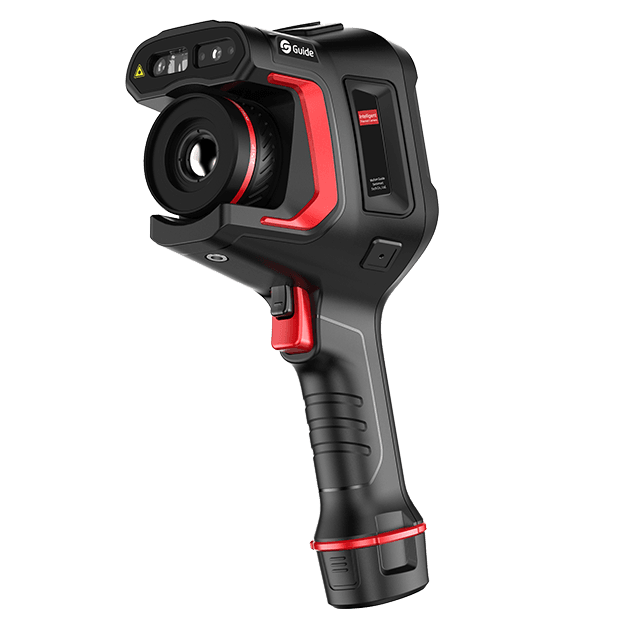

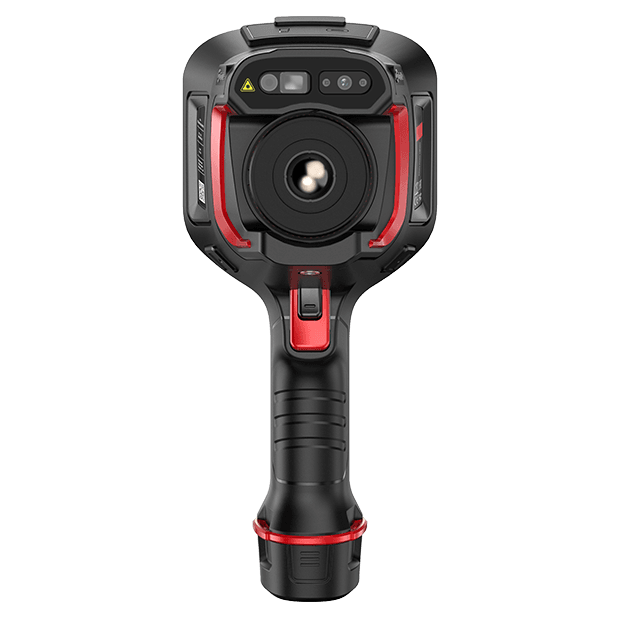

Intelligent Thermal Camera
With a built-in self-developed high-sensitivity IR detector with a maximum resolution of 640x480, a 13MP visible light camera, and 5 focusing modes, Hammer Series, the high-precision thermal camera designed specifically for the industrial field helps users intuitively view high-definition images and temperature details of the target, with the classic "hammer" shape. 30Hz infrared frame rate for fast and accurate access to more temperature data of moving targets, far beyond the same level of products.
640x480IR Resolution
13MP Visible Light
30Hz Frame Rate
OTA Upgrade
ADD TO COMPARE

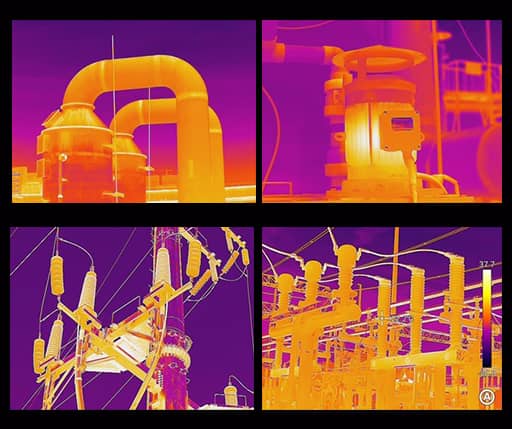

Up to 640x480 IR Resolution

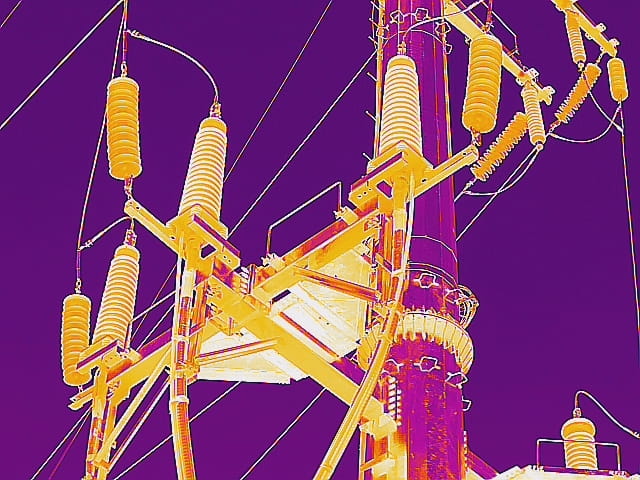

A new generation of self-developed infrared focal plane detectors with a resolution of 640x480 coupled with super-resolution reconstruction for high-quality imaging

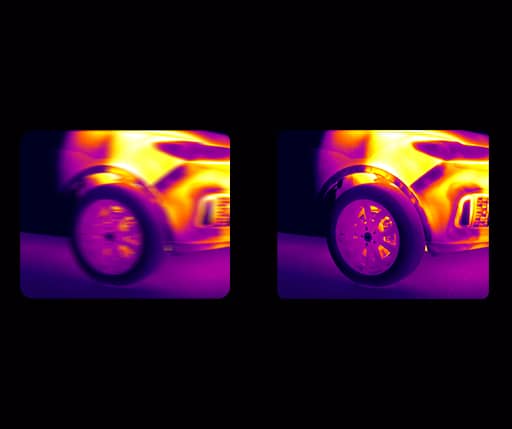

30Hz IRGD Frame Rate
IR video of raw data with frame rates up to 30Hz, ready to screenshot for temperature analysis

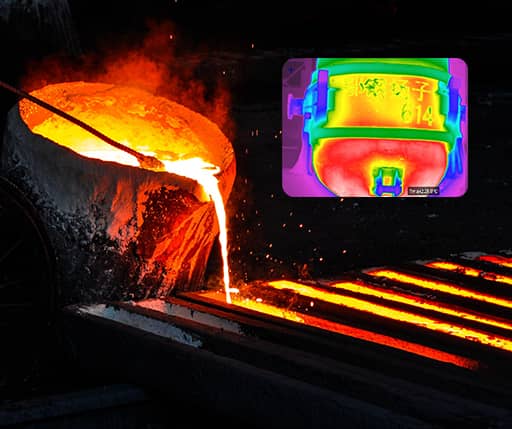

Wide-range Measurement with Rich Application Scenarios
Temperature measurement range -40℃ to 650℃, up to 2000℃ (with high-temperature lens)
Real-time Presentation of Intuitive Temperature Data

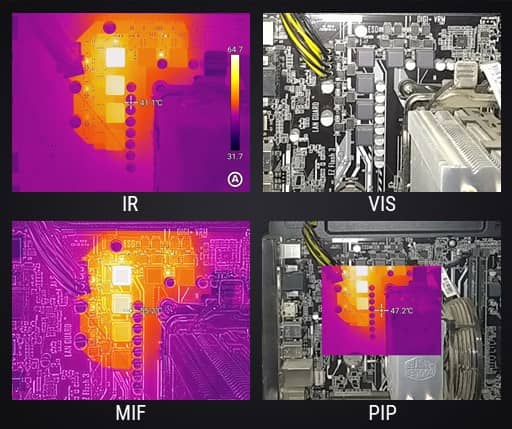

IR, VL, MIF, and PIP modes provide a visual view of the target temperature data and automatically present the highest, lowest, and central temperatures of the full screen
OTA Upgrade for the Latest System Version
The device can be upgraded by connecting to the network.
Applications

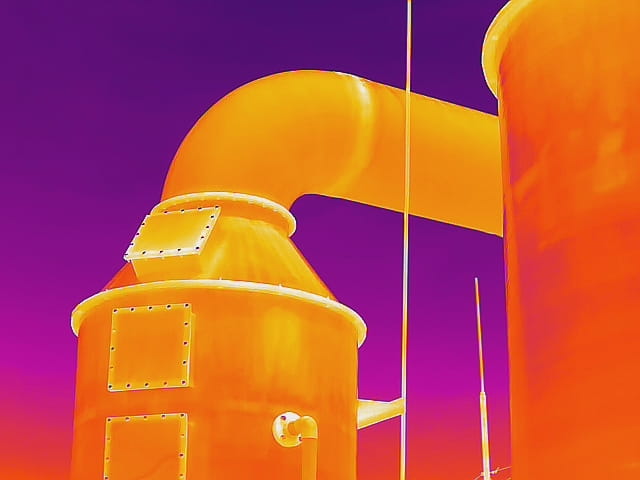

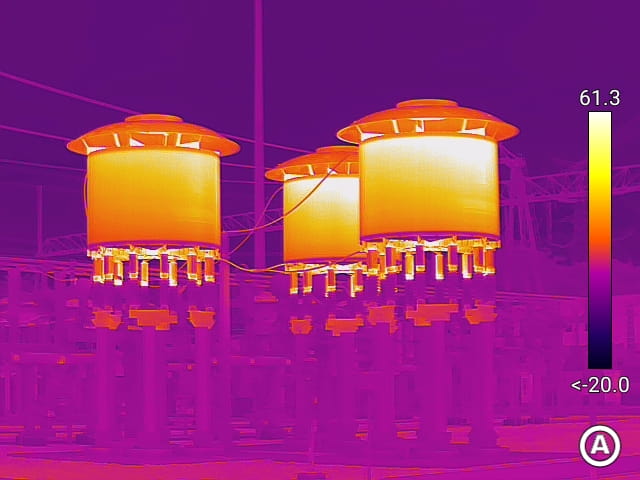

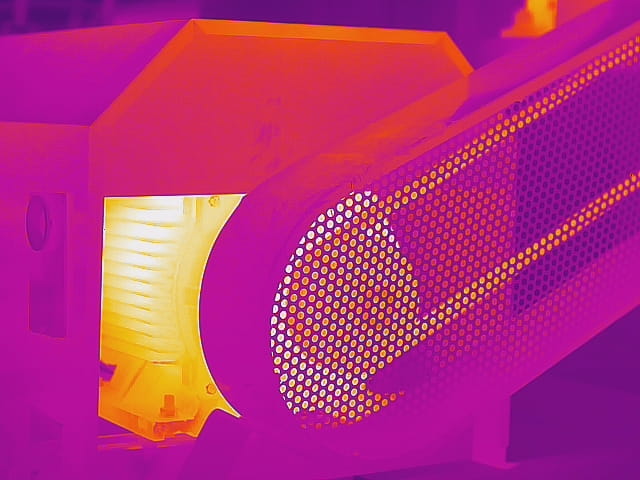

Media Gallery
Technical Parameters
Model
H6
ADD TO COMPARE
| Imaging and optics | ||||
|---|---|---|---|---|
| Detector type | VOx, 7.5 to 14μm | |||
| Infrared resolution | 640×480@12μm | |||
| Super resolution | Yes, Upgrade to 1280×960 | |||
| NETD | 30mK | |||
| Frame rate | 30Hz/9Hz | |||
| Focal length | 17.7mm | |||
| Field of view | 25°×19°/24°×18° | |||
| IFOV | 0.68mrad/0.66mrad | |||
| Min. object distance | 0.15m | |||
| D:S | 1470:1 | |||
| Focusing mode | Manual / Automatic / Touch autofocus / Continuous autofocus | |||
| Digital zoom | 1.1x to 20x | |||
| Measurement and analysis | ||||
|---|---|---|---|---|
| Measurement range | Support auto-switching: -40°C to 150°C, 0°C to 650°C, Optional 500°C to 2000°C (High temperature lens is required) | |||
| Measurement accuracy | ±2°C or ±2%, whichever is greater | |||
| Analyzed target | 16 in total (Spot/Line/Area) | |||
| Alarm | Full screen temperature threshold alarm (image, voice and flash) | |||
| Others | 2 Customized buttons, OTA update | |||
* Product performance is based on testing in a controlled laboratory environment. Your test results may vary due to several external and environmental factors. All specifications are subject to the actual product. The manufacturer reserves the right to modify technical specifications without notice or liability to you.
