FA611
Acoustic & Thermal Imaging Camera
The FA Series integrates acoustic imaging and thermal imaging technologies. It features 128 high-precision microphones, a 640×512 infrared detector, an ultra-large 10.1-inch touchscreen, and the internal and external battery solution. The FA Series is designed to quickly detect temperature anomalies, locate gas leaks and identify partial discharge, offering efficient detection solutions for industries such as power, manufacturing, and petrochemicals.
128 low-noise MEMS microphonesMicrophone array
0 kHz to 65 kHz, Adjustable rangeBandwidth
10.1'' LCD, touch screen, 1920×1200Display screen
640×512@12μmInfrared resolution
ADD TO COMPARE

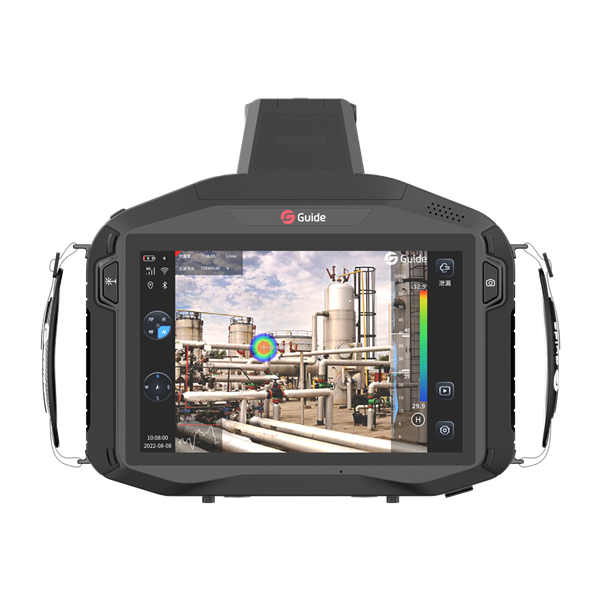

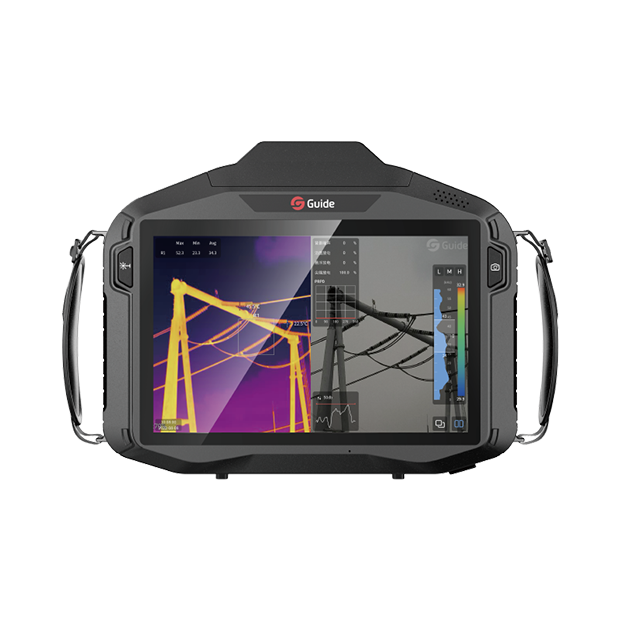

FA611 Acoustic & Thermal Imaging Camera
Thermal（Temperature anomaly detection）+Acoustic（Partial discharge/ gas leak detection）

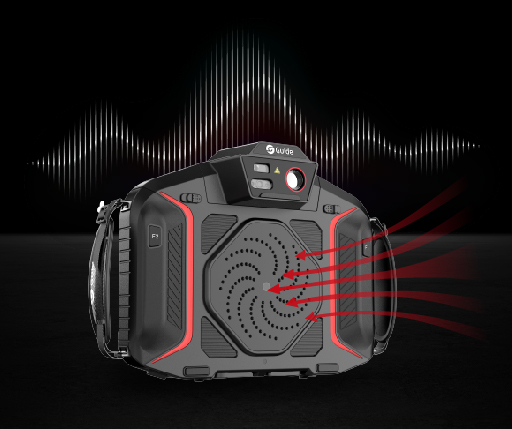

Acoustic Fault Localization
Equipped with 128 high-precision MEMS microphones in a spiral array, the FA Series delivers highly sensitive acoustic detection, accurately cap-turing sound sources for precise partial discharge and gas leak detection.

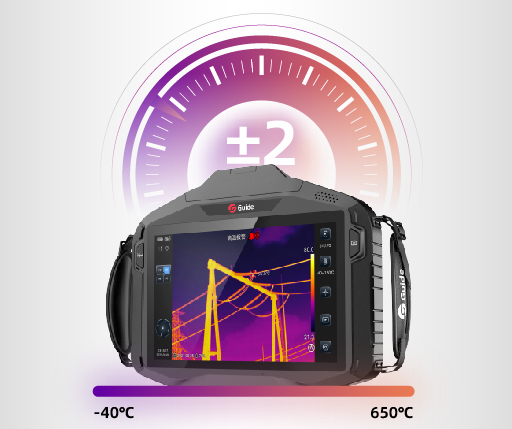

Abnormal Temperature Alarm
Equipped with a 640×512@12μm high-sensitivity infrared detector, FA Series responds quickly to temperature changes with high measurement accuracy. It can rapidly identify abnormal temperature areas and provide crystal-clear thermal imaging.

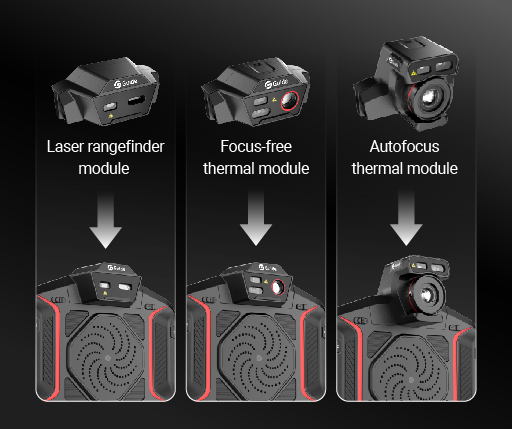

Modular Lens Design
The FA Series utilizes an industry-first modular lens design that supports hot-swapping and multiple configurations. Users can easily swap function-specific modules, enhancing efficiency in inspection tasks.

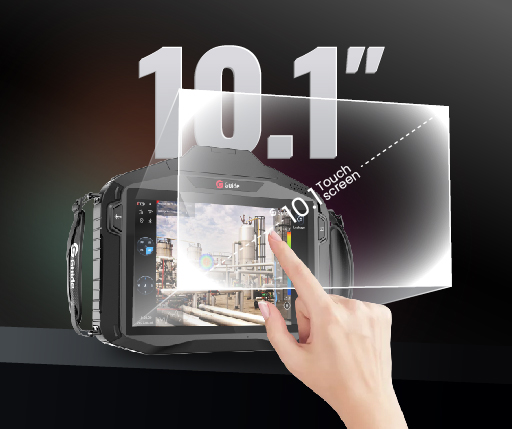

Ultra-Large Screen Visual Experience
Equipped with a 10.1-inch ultra-large touchscreen, it not only provides a broader visual experience but also makes touch-screen interaction more effortless and comfortable. It combines advantages such as low reflec-tivity, sensitive response, high durability, and resistance to accidental touches.

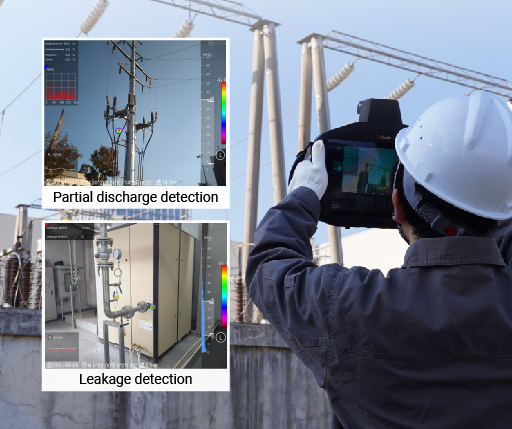

Applications
Media Gallery
Technical Parameters
Model
FA611
ADD TO COMPARE
| Acoustic Sensor | ||||
|---|---|---|---|---|
| Microphone array | 128 low-noise MEMS microphones | |||
| Bandwidth | 0 kHz to 65 kHz, Adjustable range | |||
| SPL range | 0~120 dB | |||
| Frame rate | 30Hz | |||
| Detection mode | Partial Discharge / Gas Leak | |||
| Thermal Sensor (Thermal module required) | ||||
|---|---|---|---|---|
| Detector type | VOx, 7.5 to 14μm | |||
| Infrared resolution | 640×512@12μm | |||
| Super resolution | Yes, Upgrade to 1280×1024 | |||
| NETD | 30mK | |||
| Focal length | 13mm/17.7mm | |||
| Measurement range | Support auto-switching: -40°C to 150°C, 0°C to 650°C | |||
| Measurement accuracy | ±2°C or ±2%, whichever is greater | |||
* Product performance is based on testing in a controlled laboratory environment. Your test results may vary due to several external and environmental factors. All specifications are subject to the actual product. The manufacturer reserves the right to modify technical specifications without notice or liability to you.
