E1

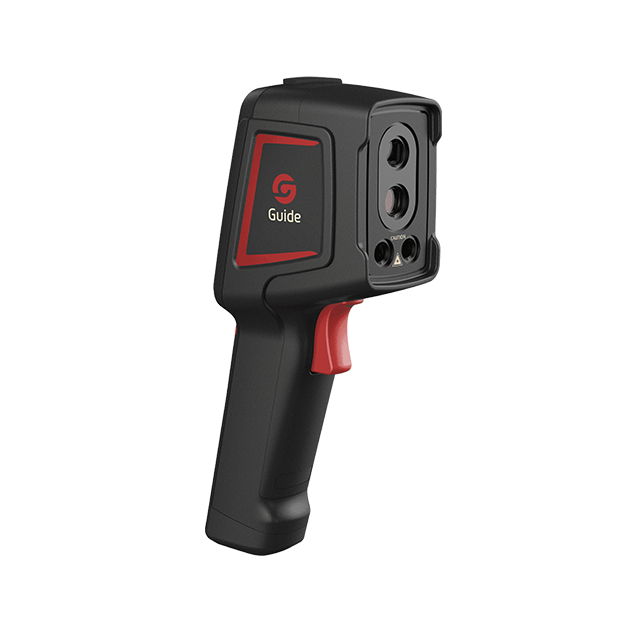

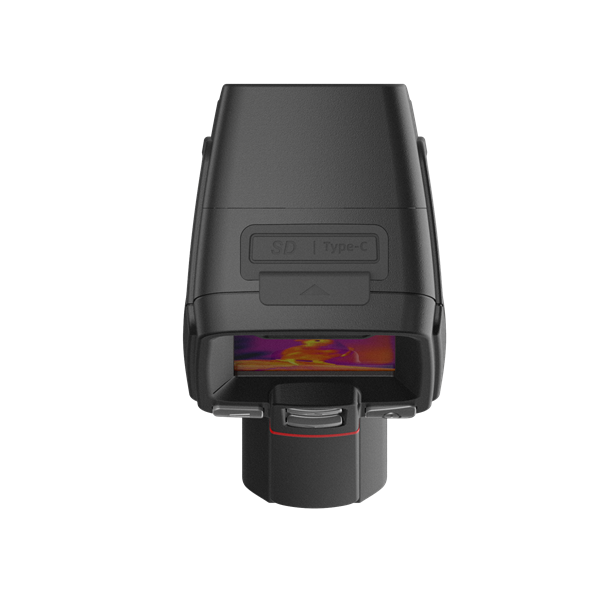

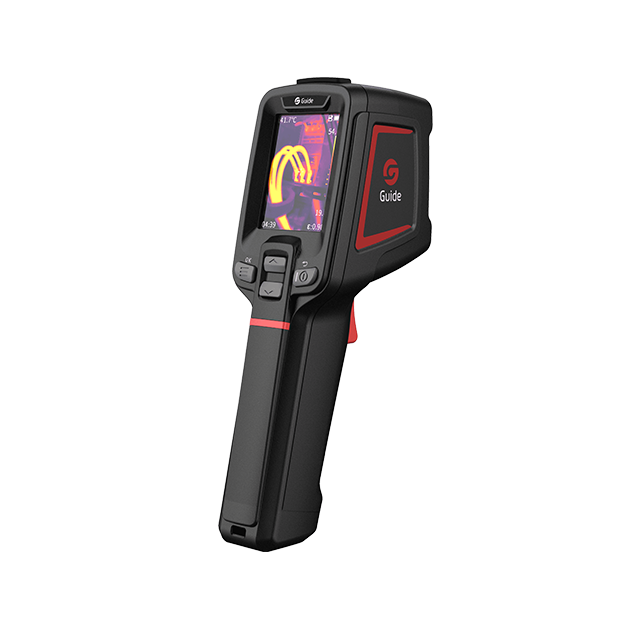

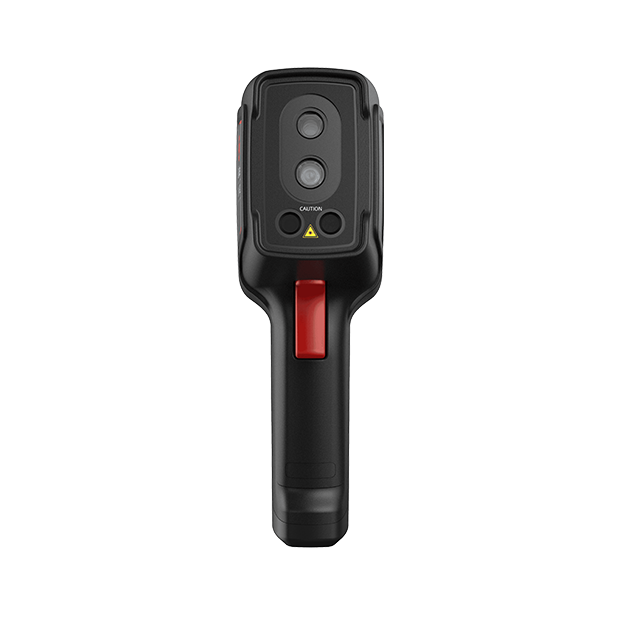

Tool-like Thermal camera
EasIR Series tool-like thermal camera with Infrared resolution 120x90. It adopts the new real-time IR-Perfclear technology to enhance the details and reduce noise of the image and present a clearer image in real time. Equipped with a series of professional functions such as 2MP visible light camera, more powerful and smoother work experience for users.
120×90@17μmIR Resolution
60mKNETD
-20°C~550°CMeasurement range
25Hz/9HzFrame rate
ADD TO COMPARE
.png)
256x192/120x90@12μm infrared detector
Based on the self-developed 12μm uncooled infrared detector, EasIR Series provides two configurations of 256×192 and 120×90 infrared resolution, which features a lower consumption with a smaller size.
Real-time IR-Perfclear technology
The real-time IR-Perfclear technology breaks through the size limitations of infrared detector, it achieves a 4x enhancement in image quality through real-time computational optimization. This delivers higher quality images with richer details and crystal-clear clarity.
Wide measurement range, automatic switching
With a wide measurement range from -20℃ to 550℃ (-20℃-150℃ / 0℃-550℃) and automatic switching, EasIR Series can meet the diverse demands of more industries with more accurate temperature measurement.

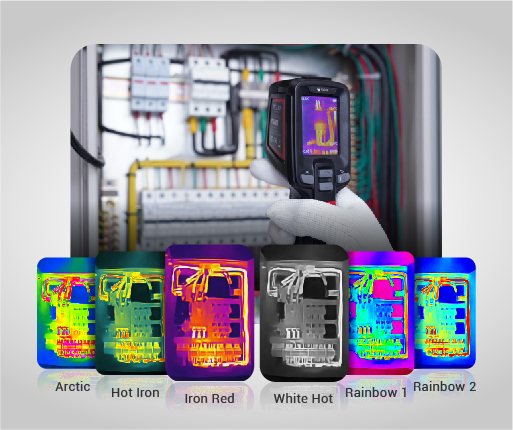

Infrared & visible light enriches the image display
Equipped with a thermal imaging sensor and visible light camera, EasIR Series provides 4 image modes and 6 color palettes, helping users to observe and analyze the heat distribution of targets more intuitively.
Applications
Media Gallery
Technical Parameters
Model
E1
ADD TO COMPARE
| Imaging and optics | ||||
|---|---|---|---|---|
| Detector type | VOx, 7.5 to 14μm | |||
| Infrared resolution | 120×90@17μm | |||
| Super resolution | Support real-time super-resolution reconstruction, Upgrade to 240×180 | |||
| NETD | 60mK | |||
| Frame rate | 25Hz/9Hz | |||
| Focal length | 2.28mm | |||
| Field of view | 50°×38° | |||
| IFOV | 7.46mrad | |||
| Min. object distance | 0.1m | |||
| D:S | 130:1 | |||
| Focusing mode | Focus-free | |||
| Measurement and analysis | ||||
|---|---|---|---|---|
| Measurement range | Support auto-switching: -20°C to 150°C, 0°C to 550°C | |||
| Measurement accuracy | ±2°C or ±2%, whichever is greater | |||
| Analyzed target | Center spot; Three Fixed Areas: Small, Medium, Large (Alternative) | |||
| Alarm | Full screen temperature threshold alarm (image and flash) | |||
| Parameter settings | Emissivity, reflected temperature, target distance | |||
* Product performance is based on testing in a controlled laboratory environment. Your test results may vary due to several external and environmental factors. All specifications are subject to the actual product. The manufacturer reserves the right to modify technical specifications without notice or liability to you.
